Card Edge Connectors

One of EDAC’s original connector lines, the Cardedge+ family of card edge connectors, have grown to become one the largest offerings available in the market. Available in a number of contact spacings, with multiple options for contact terminations, plating thicknesses and mounting styles, providing our customers more flexibility in their designs. With a product offering that exceeds 446,000 parts, EDAC is the world leader in Card Edge connectors.
Card Edge Connectors

HIGHLIGHTS

• Card Edge connectors available in 460,000+ standard styles with options for custom variations
• Contact spacings of 0.050", 0.100", 0.125", 0.150", 0.156" and 0.200"
• Gold on contact mating area or gold over nickel contact plating
• PCB thru-hole, wirewrap, solder eyelet, extender board tail, surface mount (SMT), and other specialized contact options
• From 2 to 188 contacts in single, bridged, and dual rows with or without card supports
• Styles for many computer standards including the latest versions plus PCI, EISA and ISA


Card Edge Connector Brochure:

Interconnect Solutions Brochure:



Card Edge Connectors

Card Edge Connectors

Series

Description

100 Series

100
Contacts | Loose

103 Series

103
Contacts | Horizontal strip

105 Series

105
Contacts | Vertical strip

106 Series

106
Contacts | 45 degree strip

243 Series

243
Card Edge Connector | White | 0.200" (5.08mm) Pitch | 0.200" (5.08mm) Row Spacing | 0.656" (16.66mm) Insulator Height

302 Series

302
Card Edge Connector | Black | 0.05" (1.27mm) Pitch

305 Series

305
Card Edge Connector | Green | 0.156" (3.96mm) Pitch | 0.140" (3.56mm) Row Spacing | 0.470" (11.94mm) Insulator Height

355 Series

355
Card Edge Connector | Black | 0.156" (3.96mm) Pitch | 0.140" (3.56mm) Row Spacing | 0.470" (11.94mm) Insulator Height

306 Series

306
Card Edge Connector | Green | 0.156" (3.96mm) Centreline Spacing | 0.460" (11.68mm) Insulator Height

356 Series

356
Card Edge Connector | Black | 0.156" (3.96mm) Centreline Spacing | 0.460" (11.68mm) Insulator Height

307 Series

307
Card Edge Connector | Green | 0.156" (3.96mm) Pitch | 0.200" (5.08mm) Row Spacing | 0.473" (12.01mm) Insulator Height

357 Series

357
Card Edge Connector | Black | 0.156" (3.96mm) Pitch | 0.200" (5.08mm) Row Spacing | 0.473" (12.01mm) Insulator Height

310 Series

310
Card Edge Connector | Green | 0.156" (3.96mm) Pitch | 0.200" (5.08mm) Row Spacing | 30/60 Pin | 0.460" (11.68mm) Insulator Height

315 Series

315
Card Edge Connector | Green | 0.156" (3.96mm) Pitch | 0.140" (3.56mm) Row Spacing | 0.470" (11.94mm) Insulator Height

316 Series

316
Card Edge Connector | Green | 0.156" (3.96mm) Centreline Spacing | Short Card Slot | 0.460" (11.68mm) Insulator Height

317 Series

317
Card Edge Connector | Green | 0.156" (3.96mm) Pitch | 0.200" (5.08mm) Row Spacing | 0.045" Posts | 0.720" (18.29mm) Insulator Height

322 Series

322
Card Edge Connector | Grey | 0.156" (3.96mm) Pitch | 0.200" (5.08mm) Row Spacing | 22/44 Pin with Card Guides | 0.473" (12.01mm) Insulator Height

325 Series

325
Card Edge Connector | Green | 0.100" (2.54mm) Pitch | 0.300" (7.62mm) Row Spacing | 0.600" (15.24mm) Insulator Height

333 Series

333
Card Edge Connector | Green | 0.156" (3.96mm) Pitch | 0.200" (5.08mm) Row Spacing | Deep Card Slot | 0.600" (15.24mm) Insulator Height

336 Series

336
Card Edge Connector | Green | 0.156" (3.96mm) Pitch | 0.188" (4.78mm) Row Spacing | 0.720" (18.29mm) Insulator Height

337 Series

337
Card Edge Connector | Green | 0.156" (3.96mm) Pitch | 0.200" (5.08mm) Row Spacing | 0.600" (15.24mm) Insulator Height

387 Series

387
Card Edge Connector | Black | 0.156" (3.96mm) Pitch | 0.200" (5.08mm) Row Spacing | 0.600" (15.24mm) Insulator Height

338 Series

338
Card Edge Connector | Green | 0.156" (3.96mm) Pitch | 0.200" (5.08mm) Row Spacing | 0.045" Posts | 0.473" (12.01mm) Insulator Height

341 Series

341
Card Edge Connector | Green | 0.100" (2.54mm) Pitch | 0.140" (3.56mm) Row Spacing | 0.437" (11.10mm) Insulator Height

391 Series

391
Card Edge Connector | Black | 0.100" (2.54mm) Pitch | 0.140" (3.56mm) Row Spacing | 0.437" (11.10mm) Insulator Height

342 Series

342
Card Edge Connector | Green | 0.100" (2.54mm) Pitch | 0.200" (5.08mm) Row Spacing | Deep Card Slot | 0.590" (14.99mm) Insulator Height

392 Series

392
Card Edge Connector | Black | 0.100" (2.54mm) Pitch | 0.200" (5.08mm) Row Spacing | Deep Card Slot | 0.590" (14.99mm) Insulator Height

345 Series

345
Card Edge Connector | Green | 0.100" (2.54mm) Pitch | 0.200" (5.08mm) Row Spacing | 0.600" (15.24mm) Insulator Height

395 Series

395
Card Edge Connector | Black | 0.100" (2.54mm) Pitch | 0.200" (5.08mm) Row Spacing | 0.600" (15.24mm) Insulator Height

346 Series

346
Card Edge Connector | Green | 0.125" (3.175mm) Pitch | 0.250" (6.35mm) Row Spacing | 0.600" (15.24mm) Insulator Height

396 Series

396
Card Edge Connector | Black | 0.125" (3.175mm) Pitch | 0.250" (6.35mm) Row Spacing | 0.600" (15.24mm) Insulator Height

368 Series

368
Card Edge Connector | Green | 0.156" (3.96mm) Pitch | 0.200" (5.08mm) Row Spacing | Modular | 0.630" (16.00mm) Insulator Height

379 Series

379
Card Edge Connector | Black | 0.150" (3.81mm) Pitch | 0.200" (5.08mm) Row Spacing | 0.600" (15.24mm) Insulator Height

395-ISA Series

395-ISA
Card Edge Connector | 0.100" (2.54mm) Pitch | 0.200" (5.08mm) Row Spacing | ISA Standards | 0.600" (15.24mm) Insulator Height

Card Guides Series

Card Guides
Edgeboard Connector Card Guides

Uni-Guides Series

Uni-Guides
Edgeboard Connector Uni-Guides

Polarizing Keys Series

Polarizing Keys
Edgeboard Connector Polarizing Keys

Pressfit Card Edge Connectors

Series

Description

717 Series

717
Pressfit Card Edge Connector | Black | 0.156" (3.96mm) Pitch | 0.200" (5.08mm) Row Spacing | Low Profile Insulator

725 Series

725
Pressfit Card Edge Connector | Black | 0.100" (2.54mm) Pitch | 0.200" (5.08mm) Row Spacing | Low Profile Insulator

737 Series

737
Pressfit Card Edge Connector | Black | 0.156" (3.96mm) Pitch | 0.200" (5.08mm) Row Spacing

745 Series

745
Pressfit Card Edge Connector | Black | 0.100" (2.54mm) | 0.200" (5.08mm) Row Spacing

746 Series

746
Pressfit Card Edge Connector | Black | 0.125" (3.175mm) Pitch | 0.250" (6.35mm) Row Spacing

Metal to Metal Card Edge Connectors

Series

Description

408 Series

408
High Reliability Inter-Lock | Green | Metal to Metal | Receptacle | Closed Card Slot

415 Series

415
High Reliability Inter-Lock | Green | Metal to Metal | Receptacle | High Profile Insulator | Closed Card Slot

421 Series

421
High Reliability Inter-Lock | Green | Metal to Metal | Plug | Mounting Ears

422 Series

422
High Reliability Inter-Lock | Green | Metal to Metal | Plug | No Mounting Ears

423 Series

423
High Reliability Inter-Lock | Green | Metal to Metal | Plug | Mounting Ears with Guide Pins

424 Series

424
High Reliability Inter-Lock | Green | Metal to Metal | Receptacle | Open Card Slot

438 Series

438
High Reliability Inter-Lock | Green | Metal to Metal | Receptacle | High Profile Insulator | Open Card Slot

High Temp Card Edge Connectors

Series

Description

802 Series

802
High Temp Card Edge Connector | Black | 0.05" (1.27mm) Pitch

807 Series

807
High Temp Card Edge Connector | Green | 0.156" (3.96mm) Pitch | 0.200" (5.08mm) Row Spacing | Low Profile Insulator

857 Series

857
High Temp Card Edge Connector | Black | 0.156" (3.96mm) Pitch | 0.200" (5.08mm) Row Spacing | Low Profile Insulator

833 Series

833
High Temp Card Edge Connector | Green | 0.156" (3.96mm) Pitch | 0.200" (5.08mm) Row Spacing | High Profile Insulator | Deep Card Slot

837 Series

837
High Temp Card Edge Connector | Green | 0.156" (3.96mm) Pitch | 0.200" (5.08mm) Row Spacing | High Profile Insulator

887 Series

887
High Temp Card Edge Connector | Black | 0.156" (3.96mm) Pitch | 0.200" (5.08mm) Row Spacing | High Profile Insulator

842 Series

842
High Temp Card Edge Connector | Green | 0.100" (2.54mm) Pitch | 0.200" (5.08mm) Row Spacing | Deep Card Slot

892 Series

892
High Temp Card Edge Connector | Black | 0.100" (2.54mm) Pitch | 0.200" (5.08mm) Row Spacing | Deep Card Slot

845 Series

845
High Temp Card Edge Connector | Green | 0.100" (2.54mm) Pitch | 0.200" (5.08mm) Row Spacing

895 Series

895
High Temp Card Edge Connector | Black | 0.100" (2.54mm) Pitch | 0.200" (5.08mm) Row Spacing

846 Series

846
High Temp Card Edge Connector | Green | 0.125" (3.175mm) Pitch | 0.250" (6.35mm) Row Spacing

896 Series

896
High Temp Card Edge Connector | Black | 0.125" (3.175mm) Pitch | 0.250" (6.35mm) Row Spacing

High Speed Card Edge Connectors

Series

Description

271 Series

271
High Speed Card Edge Connectors | SAS Connector 1.27mm Signal Pitch 0.80mm SCSI Pitch | 68 Pin | Plug

272 Series

272
High Speed Card Edge Connectors | SAS Connector 1.27mm Signal Pitch 0.80mm SCSI Pitch | Pressfit | Receptacle

273 Series

273
High Speed Card Edge Connectors | SAS Connector 1.27mm Signal Pitch 0.80mm SCSI Pitch | Receptacle

370 Series

370
High Speed Card Edge Connectors | Card Edge Connector SMT 0.8mm Pitch | Receptacle without Latch

470 Series

470
High Speed Card Edge Connectors | Board to Board Male Vertical SMT Connector 1.27mm Pitch

472 Series

472
High Speed Card Edge Connectors | Board to Board 0.8 mm Pitch | Vertical SMT | Plug

473 Series

473
High Speed Card Edge Connectors | Board to Board 0.8 mm Pitch | Right-angle SMT | Receptacle

SMT Card Edge Connectors

Series

Description

299 Series

299
ClipZin SMT Card Edge Connector


Card Edge Connector | EDAC

Over the years our product offering has evolved and grown, and we now have one of the largest ranges of interconnect products on the market. Our cardEDGE+ pcb edge connector range is no exception and offers many features and benefits that allow customers more flexibility with their design.

They are suitable for applications such as Power Supplies, Storage Devices, Navigational Equipment, Industrial Controls and many more.

What is an edge connector?

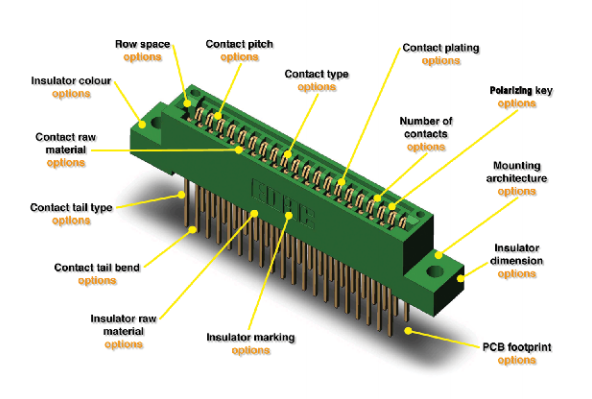

More Flexibility

Today we supply a wide variety of products and EDAC prides itself on its flexible approach in the design of connectors. We see this ability as our differentiator. Using our cardEDGE+ edge connectors means customers have additional design options and more opportunity to tailor their interconnect requirements to their actual needs.

  • Additional contact terminations
  • Extra mounting options
  • Mutiple card guide solutions
  • High temperature insulators
  • Extra row spaces
  • Multiple PCB footprints
  • Choice of insulator colours
  • Contact plating options
  • Superior quality
  • Competitively priced

We are proud of our capability to offer cardEDGE+ edge connectors manufactured to customers’ specific requirements. We continually update and advance our products to ensure that our customers have access to the latest and best products available.Contact us for additional information.
