HDMI Connectors

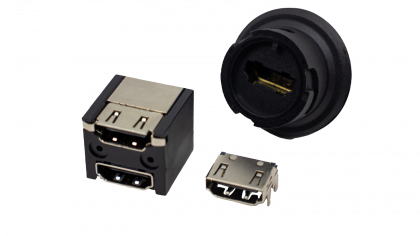

HDMI connectors follow industry standards and are available in vertical or right-angle orientations. Single or dual port versions are available. These deliver high speed video transmissions resulting in very high-resolution images.
HDMI Connectors
  • Standard 19 pin type A, micro versions, and an automotive shrouded version are available
  • Vertical or right angle and single or dual stacked
  • Plating options from gold flash to 30u" gold for high insertion cycles
  • Hot pluggable
  • Synchronous and asynchronous data transfers

HDMI Connector Brochure:

Interconnect Solutions Brochure:



HDMI Connectors

HDMI Connectors

Series

Description

694A Series

694A
HDMI TYPE-A 2.1 RECEPTACLES

694B Series

694B
HDMI TYPE-A RECEPTACLES - RIGHT ANGLE PCB

694C Series

694C
HDMI TYPE-A RECEPTACLES - MID-MOUNT PCB

694D Series

694D
HDMI TYPE-A RECEPTACLES - RIGHT ANGLE SMT - STANDARD

694E Series

694E
HDMI TYPE-A RECEPTACLES - RIGHT ANGLE SMT M3 MOUNTING

694F Series

694F
HDMI TYPE-A RECEPTACLES - VERTICAL SMT

694H Series

694H
HDMI TYPE-D RECEPTACLES

Waterproof HDMI Connectors

Series

Description

694W Series

694W
Waterproof HDMI Connectors
