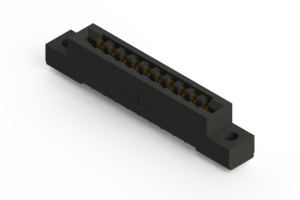

One of EDAC’s original product families, the Cardedge+ family of card edge connectors has grown to become one the largest offerings available in the market. Available in a number of contact spacings, with multiple options for contact terminations, plating thicknesses and mounting styles, providing our customers more flexibility with their designs.
Card Edge Connectors Series
Series |
Description |
|---|---|
100 Series
|
Contacts | Loose |
103 Series
|
Contacts | Horizontal strip |
105 Series
|
Contacts | Vertical strip |
106 Series
|
Contacts | 45 degree strip |
243 Series
|
Card Edge Connector | White | 0.200" (5.08mm) Pitch | 0.200" (5.08mm) Row Spacing | 0.656" (16.66mm) Insulator Height |
302 Series
|
Card Edge Connector | Black | 0.05" (1.27mm) Pitch |
305 Series
|
Card Edge Connector | Green | 0.156" (3.96mm) Pitch | 0.140" (3.56mm) Row Spacing | 0.470" (11.94mm) Insulator Height |
306 Series
|
Card Edge Connector | Green | 0.156" (3.96mm) Centreline Spacing | 0.460" (11.68mm) Insulator Height |
307 Series
|
Card Edge Connector | Green | 0.156" (3.96mm) Pitch | 0.200" (5.08mm) Row Spacing | 0.473" (12.01mm) Insulator Height |
310 Series
|
Card Edge Connector | Green | 0.156" (3.96mm) Pitch | 0.200" (5.08mm) Row Spacing | 30/60 Pin | 0.460" (11.68mm) Insulator Height |
315 Series
|
Card Edge Connector | Green | 0.156" (3.96mm) Pitch | 0.140" (3.56mm) Row Spacing | 0.470" (11.94mm) Insulator Height |
316 Series
|
Card Edge Connector | Green | 0.156" (3.96mm) Centreline Spacing | Short Card Slot | 0.460" (11.68mm) Insulator Height |
317 Series
|
Card Edge Connector | Green | 0.156" (3.96mm) Pitch | 0.200" (5.08mm) Row Spacing | 0.045" Posts | 0.720" (18.29mm) Insulator Height |
322 Series
|
Card Edge Connector | Grey | 0.156" (3.96mm) Pitch | 0.200" (5.08mm) Row Spacing | 22/44 Pin with Card Guides | 0.473" (12.01mm) Insulator Height |
325 Series
|
Card Edge Connector | Green | 0.100" (2.54mm) Pitch | 0.300" (7.62mm) Row Spacing | 0.600" (15.24mm) Insulator Height |
333 Series
|
Card Edge Connector | Green | 0.156" (3.96mm) Pitch | 0.200" (5.08mm) Row Spacing | Deep Card Slot | 0.600" (15.24mm) Insulator Height |
336 Series
|
Card Edge Connector | Green | 0.156" (3.96mm) Pitch | 0.188" (4.78mm) Row Spacing | 0.720" (18.29mm) Insulator Height |
337 Series
|
Card Edge Connector | Green | 0.156" (3.96mm) Pitch | 0.200" (5.08mm) Row Spacing | 0.600" (15.24mm) Insulator Height |
338 Series
|
Card Edge Connector | Green | 0.156" (3.96mm) Pitch | 0.200" (5.08mm) Row Spacing | 0.045" Posts | 0.473" (12.01mm) Insulator Height |
341 Series
|
Card Edge Connector | Green | 0.100" (2.54mm) Pitch | 0.140" (3.56mm) Row Spacing | 0.437" (11.10mm) Insulator Height |
342 Series
|
Card Edge Connector | Green | 0.100" (2.54mm) Pitch | 0.200" (5.08mm) Row Spacing | Deep Card Slot | 0.590" (14.99mm) Insulator Height |
345 Series
|
Card Edge Connector | Green | 0.100" (2.54mm) Pitch | 0.200" (5.08mm) Row Spacing | 0.600" (15.24mm) Insulator Height |
346 Series
|
Card Edge Connector | Green | 0.125" (3.175mm) Pitch | 0.250" (6.35mm) Row Spacing | 0.600" (15.24mm) Insulator Height |
355 Series
|
Card Edge Connector | Black | 0.156" (3.96mm) Pitch | 0.140" (3.56mm) Row Spacing | 0.470" (11.94mm) Insulator Height |
356 Series
|
Card Edge Connector | Black | 0.156" (3.96mm) Centreline Spacing | 0.460" (11.68mm) Insulator Height |
357 Series
|
Card Edge Connector | Black | 0.156" (3.96mm) Pitch | 0.200" (5.08mm) Row Spacing | 0.473" (12.01mm) Insulator Height |
368 Series
|
Card Edge Connector | Green | 0.156" (3.96mm) Pitch | 0.200" (5.08mm) Row Spacing | Modular | 0.630" (16.00mm) Insulator Height |
379 Series
|
Card Edge Connector | Black | 0.150" (3.81mm) Pitch | 0.200" (5.08mm) Row Spacing | 0.600" (15.24mm) Insulator Height |
387 Series
|
Card Edge Connector | Black | 0.156" (3.96mm) Pitch | 0.200" (5.08mm) Row Spacing | 0.600" (15.24mm) Insulator Height |
391 Series
|
Card Edge Connector | Black | 0.100" (2.54mm) Pitch | 0.140" (3.56mm) Row Spacing | 0.437" (11.10mm) Insulator Height |
392 Series
|
Card Edge Connector | Black | 0.100" (2.54mm) Pitch | 0.200" (5.08mm) Row Spacing | Deep Card Slot | 0.590" (14.99mm) Insulator Height |
395 Series
|
Card Edge Connector | Black | 0.100" (2.54mm) Pitch | 0.200" (5.08mm) Row Spacing | 0.600" (15.24mm) Insulator Height |
395-ISA Series
|
Card Edge Connector | 0.100" (2.54mm) Pitch | 0.200" (5.08mm) Row Spacing | ISA Standards | 0.600" (15.24mm) Insulator Height |
396 Series
|
Card Edge Connector | Black | 0.125" (3.175mm) Pitch | 0.250" (6.35mm) Row Spacing | 0.600" (15.24mm) Insulator Height |
Card Guides Series
|
Edgeboard Connector Card Guides |
Polarizing Keys Series
|
Edgeboard Connector Polarizing Keys |
Uni-Guides Series
|
Edgeboard Connector Uni-Guides |
