INLINE CONNECTORS

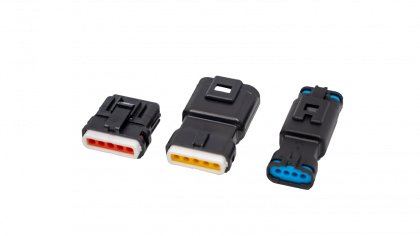

One of EDAC’s connector lines, the Inline+ family of connectors are wire to board connectors providing a reliable and economical connection. These shrouded headers are available in a variety of positions. Right angle, vertical, SMT or through hole mounted to the PCB. These connectors are ideal for use in wire harness applications and can be customized to meet your design parameters. Compatible with leading industry connectors as drop-in replacements.

Search Parts:

Check Distributor Stock

Highlights

Non-Waterproof In-Line Connector Options

• Low-profile insulator body for space-saving on PCBs
• Crimp contacts designed for a range of wire gauges from 30-18 AWG
• Top entry or side entry configurations available
• Contact terminations include P.C. Tail, SMT, Wire Hole, Wire Wrap, and Crimp
• For use with multiple PC board thicknesses, including .047"(1.19mm) to .062" (1.60mm)
• .079" (2.00mm), .098" (2.50mm), .156" (3.96mm), .200" (5.08mm) contact spacing available
• The 14X range offers a compact and lightweight build with fine-pitch options available
• Higher current options are available to support higher power demands

Waterproof In-Line Connector Options

• Current rating available from 3 to 10 amps for use with wire sizes from 28-14 AWG
• 560 and 572 series offer our double latch solution
• Available in wire-to-wire and wire-to-board options
• Internal polarization to prevent mismating
• 5XX E-Seal+ Series uses a Proprietary epoxy sealing process through which seals the entire back of the connector rather than at individual pins. This provides for complete sealing with an impeccably smooth finish and guarantees no water ingress as fully tested to IP52 and IP67 standards

Inline Connector Brochure:

Interconnect Solutions Brochure:

French Interconnect Solutions Connector Brochure

INLINE CONNECTORS

Wire to Wire and Wire to Board Connectors Waterproof Wire to Wire and Wire to Board Connectors Wire Connectors Waterproof Wire Connectors Double Latch Technology

Wire to Wire and Wire to Board Connectors

Series	Description
140 Series	In-Line Connectors \| Wire-to-Board \|.079" (2.00mm) Pitch
14K Series	In-Line Connectors \| Wire-to-Board and Wire-to-Wire \| .098" (2.50mm) Pitch
14L Series	In-Line Connectors \| Wire-to-Board \| .156" (3.96mm) Pitch
520 Series	Hermaphroditic In-line Cable Connector

Waterproof Wire to Wire and Wire to Board Connectors

Series	Description
560 Series	IP67 \| E-Seal \| In-Line Waterproof Connectors \| 2.50mm Pitch \| Double Latch
565 Series	IP67 \| E-Seal \| In-Line Waterproof Connectors \| 2.50mm Pitch
566 Series	IP67 \| E-Seal \| In-Line Waterproof Connectors \| 2.00mm Pitch
567 Series	IP52 \| E-Seal \| In-Line Waterproof Connectors \| 5.00mm x 5.90mm Pitch
568 Series	IP52 \| E-Seal \| In-Line Waterproof Connectors \| Single Pin
570 Series	IP67 \| E-Seal \| In-Line Waterproof Connectors \| 5.80mm Pitch
572 Series	IP67 \| E-Seal \| In-Line Waterproof Connectors \| 5.80mm Pitch \| Double Latch
Accessories Series	E-Seal Waterproof Inline Connector Accessories
