Search Parts:

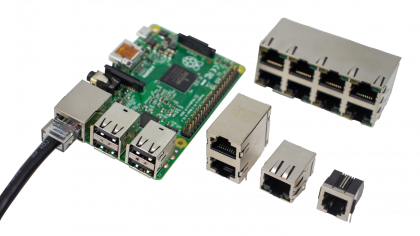

RJ45 & RJ11 Highlights
- RJ11/ RJ45 single or stacked units with or without LEDs, with shielding and mounting options
- Right angle mount or vertical mount in thru-hole PCB; some styles available in SMT
- Gold flash or gold plated contacts, including high thickness gold plating for telecom
- Shielded front ground, shielded rear ground, unshielded, or face shielded versions
- Up to 8 ports ganged single row or 16 ports stacked as a dual row
- Optional pair of LEDs in mixed combinations of green, orange, red, or yellow on receptacle face including bi-color variations
- Low or high profile types, keyed or unkeyed, with or without mounting flange
- Magnetic Jacks are RJ45 modular jacks with integrated network magnetics
- Combined connectivity with signal conditioning, electro magnetic interference suppression and isolation
- These parameters were previously performed by separate and discrete magnetic components mounted on the PC board
- Available as single or stacked multi-port options
Modular Jack Connector Brochure:
Interconnect Solutions Brochure:
Modular & Magnetic Jacks
Modular Jack Connectors
Series |
Description |
|---|---|
J21 Series
|
SINGLE PORT RJ11, VERTICAL PCB MOUNT, NON-SHIELDED, 6.35mm FOOTPRINT |
J24 Series
|
SINGLE PORT RJ11 WITH OPTIONAL MBB, VERTICAL PCB MOUNT, NON-SHIELDED, 6.35mm FOOTPRINT |
J28 Series
|
SINGLE PORT RJ45, VERTICAL PCB MOUNT, NON-SHIELDED, 6.35mm FOOTPRINT (13mm BODY) |
J20 Series
|
SINGLE PORT RJ45, VERTICAL PCB MOUNT, NON-SHIELDED, 6.35mm FOOTPRINT (16.4mm BODY) |
J2K Series
|
SINGLE PORT RJ45, VERTICAL PCB MOUNT, NON-SHIELDED, 6.4mm FOOTPRINT |
J2L Series
|
SINGLE PORT RJ45, VERTICAL PCB MOUNT, SHIELDED, 6.35mm FOOTPRINT |
J2T Series
|
SINGLE PORT RJ45, 45 degree PCB MOUNT, SHIELDED, 6.35mm FOOTPRINT |
J2W Series
|
4 PORT RJ45 WITH LEDS, VERTICAL PCB MOUNT, NON-SHIELDED, 3.2mm FOOTPRINT |
J2X Series
|
SINGLE PORT RJ11, VERTICAL PCB MOUNT, NON-SHIELDED, LINKABLE HOUSING |
JF2 Series
|
2 PORT RJ45, VERTICAL PCB MOUNT, NON-SHIELDED WITH PANEL STOPS |
JG2 Series
|
3 PORT RJ45, TAB UP RIGHT ANGLE PCB MOUNT, NON-SHIELDED WITH PANEL STOPS |
J53 Series
|
2 PORT RJ11, TAB UP RIGHT ANGLE PCB MOUNT, NON-SHIELDED WITH PANEL STOPS, 2.3mm FOOTPRINT |
J67 Series
|
4 PORT RJ45 WITH LEDS, TAB UP RIGHT ANGLE PCB MOUNT, NON SHIELDED, 2.54mm FOOTPRINT |
J60 Series
|
4 PORT RJ45, TAB DOWN RIGHT ANGLE PCB MOUNT, SHIELDED, 6.35mm FOOTPRINT |
J6A Series
|
2 PORT RJ45, RIGHT ANGLE PCB MOUNT, SHIELDED, 2.54mm FOOTPRINT |
J6D Series
|
SINGLE PORT RJ45 WITH OPTIONAL LEDS, TAB UP RIGHT ANGLE SMT MOUNT, SHIELDED WITH OPTIONAL EMI |
J6E Series
|
SINGLE PORT RJ45 WITH OPTIONAL LEDS, TAB UP RIGHT ANGLE SMT MOUNT, SHIELDED |
J6F Series
|
SINGLE PORT RJ45, TAB UP RIGHT ANGLE PCB MOUNT, SHIELDED, 2.54mm FOOTPRINT |
J79 Series
|
SINGLE PORT RJ45, TAB DOWN RIGHT ANGLE PCB MOUNT, NON-SHIELDED, 6.35mm FOOTPRINT |
J93 Series
|
4 PORT RJ45, TAB DOWN RIGHT ANGLE PCB MOUNT, SHIELDED, 6.30mm FOOTPRINT |
J96 Series
|
MULTI-PORT STACKED RJ45 WITH OPTIONAL LEDS, RIGHT ANGLE PCB MOUNT, SHIELDED WITH OPTIONAL EMI |
J9F Series
|
4 PORT (2x2 STACKED) RJ45, RIGHT ANGLE PCB MOUNT, NON-SHIELDED |
J9P Series
|
SINGLE PORT RJ45 WITH OPTIONAL LEDS, TAB DOWN RIGHT ANGLE PCB MOUNT, SHIELDED WITH EMI |
J9Q Series
|
SINGLE PORT RJ45, TAB DOWN RIGHT ANGLE PCB MOUNT, SHIELDED WITH 'REVERSED' EMI, 6.35mm FOOTPRINT |
JPG Series
|
SINGLE PORT RJ45, 'REVERSED' VERTICAL PCB MOUNT, NON-SHIELDED |
JS8 Series
|
SINGLE PORT RJ45, TAB DOWN RIGHT ANGLE SMT MOUNT, SHIELDED WITH EMI |
Magnetic Modular Jack Connectors
Series |
Description |
|---|---|
A6X Series
|
Magnetic Jacks With LED |

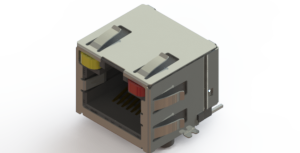

RJ45 and RJ11 edacJAX Connectors
EDAC has one of the largest ranges of interconnect products on the market. Our edacJAX range of Magnetic and Modular Jacks is no exception and offer many features and benefits.
These modular (RJ-45 and RJ-11) connectors are used in Data, Telecom, Networking and Home Entertainment markets for applications such as Servers, Hubs, Routers, Computers, Set Top Boxes and Digital TVs.
What is an rj45 or rj11 Modular jack and Magnetic jack connector?
Why use a Magnetic Jack Connector?
A Magnetic Jack connector is a combination of up to 10 discrete components:- RJ45 Connector, impedance matching transformers, 2 LEDs, 4 termination resistors, high voltage capacitor and often common mode chokes. Typical use is in Ethernet applications that employ 10BASE-T, 10/100BASE-T, 1000BASE-T / Gigabit and come with or without PoE and VoIP capability.
Today’s LAN and Ethernet hardware design engineers have 2 solutions to lay out these components onto the PCB:
1. Lay out the individual components discretely onto the PCB or
2. Use a Magnetic Jack Connector - the integrated approach
There are many advantages of using the integrated approach, so here are the top 5:
Reduction of PCB Real Estate Space – By combining the individual components into the RJ housing the PCB real estate will be cut by more than 50%.
Capitalize on improving efficiency – In engineering, purchasing, inventory management and manufacturing. Using only 1 component instead of the potential 10, will enable faster designs, simplify the purchasing process, streamline inventory management and reduce manufacturing time.
Improved Reliability - Magnetics are often the least reliable PCB components, due to the fragile fine copper wire used. In keeping the magnetics and other components inside the RJ45 housing they are protected from heat and other environmental exposures, which can accelerate unexpected and untimely field failures.
Decrease System Noise – As communication speeds increase so do the problems brought on by noise which will be in a number of forms such as EMI, RFI, crosstalk and jitter. As the individual components are contained inside the RJ housing there is a reduction in the number of exposed components, number of traces, the overall signal path and therefore system noise. Putting it simply, using a Shielded Magnetic Jack Connector will reduce system noise.
Connector Availability – Please contact EDAC for stock listing.
What will be the most popular Magnetic Jack Connector?
10/100BASE-T (with or without POE)
1000BASE-T (with or without POE)
Magnetic Jack Connectors
EDAC Magnetic Jack Connectors are designed and manufactured to comply with IEEE 802.3, EIA 364 standard and are fully compliant with RoHS requirements. Available as single or stacked multiport options and with USB and HDMI connectors incorporated into a combined package.
Cat 3, Cat 4, Cat 5, Cat 5e, Cat 6, and Cat 6e options available! Contact us for additional information.
