D-Sub Panel Cut-outs



What is a D-sub cut-out?

D-sub cut-outs is the opening & holes pattern where the D-sub connector is inserted & fixed to the panel.

D-sub cut-out option

Two options of D-sub panel cut-outs are available, panel cut-out for front & back mounted.


Front Mounted

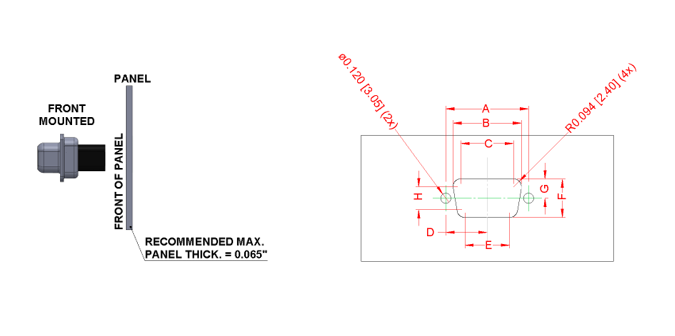

Front mounted dsub panel cutout










A

B

C

D

E

F

G

H

9 STD / 15 H.D.

0.984
[24.99]

0.815
[20.70]

0.626
[15.90]

0.492
[12.50]

0.530
[13.47]

0.460
[11.68]

0.230
[5.84]

0.271
[6.88]

15 STD / 26 H.D.

1.312
[33.32]

1.142
[29.00]

0.953
[24.20]

0.656
[16.66]

0.857
[21.77]

0.460
[11.68]

0.230
[5.84]

0.271
[6.88]

25 STD / 44 H.D.

1.852
[47.04]

1.685
[42.80]

1.496
[38.00]

0.926
[23.52]

1.400
[35.57]

0.460
[11.68]

0.230
[5.84]

0.271
[6.88]

37 STD / 62 H.D.

2.500
[63.50]

2.331
[59.20]

2.142
[54.40]

1.250
[31.75]

2.046
[51.97]

0.460
[11.68]

0.230
[5.84]

0.271
[6.88]

50 STD / 78 H.D.

2.406
[61.11]

2.236
[56.80]

2.047
[52.00]

1.203
30.54

1.916
[48.66]

0.562
[14.28]

0.281
[7.14]

0.373
[9.48]


Back mounted

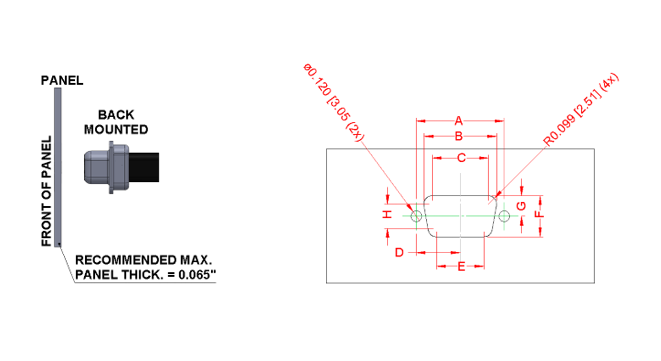

Back mounted dsub panel cutout











A

B

C

D

E

F

G

H

9 STD / 15 H.D.

0.984
[24.99]

0.806
[24.47]

0.609
[15.46]

0.492
[12.50]

0.530
[13.47]

0.420
[10.67]

0.210
[5.33]

0.223
[5.66]

15 STD / 26 H.D.

1.312
[33.32]

1.134
[28.80]

0.937
[23.79]

0.656
[16.66]

0.858
[21.79]

0.420
[10.67]

0.210
[5.33]

0.223
[5.66]

25 STD / 44 H.D.

1.852
[47.04]

1.674
[42.52]

1.477
[37.51]

0.926
[23.52]

1.398
[35.51]

0.420
[10.67]

0.210
[5.33]

0.223
[5.66]

37 STD / 62 H.D.

2.500
[63.50]

2.326
[59.08]

2.129
[54.07]

1.250
[31.75]

2.050
[52.07]

0.420
[10.67]

0.210
[5.33]

0.223
[5.66]

50 STD / 78 H.D.

2.406
[61.11]

2.218
[56.34]

2.021
[51.32]

1.203
30.54

1.895
[48.12]

0.555
[14.10]

0.278
[7.05]

0.358
[9.08]


We continually update and advance our products to ensure that our customers have access to the latest and best products available. Contact us for additional information.
