Power Combo D-Sub Connectors

Power Combo D-Sub Connectors

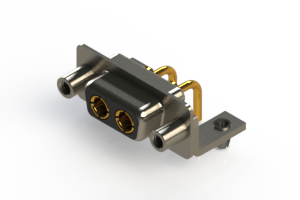

The EDAC Power-D product line is a D-Subminiature style connector combining standard signal contacts with power or coaxial contacts in the same connector. The body dimensions are similar to the standard D-sub sizes 9, 15, 25, 37 and 50 pin, and are offered in 22 different configurations. Power contacts up to 40 amps, or coaxial contacts with either 50 or 75 ohm impedance ratings are available.





Power Combo D-sub Connectors Brochure:

Interconnect Solutions Brochure:



Power Combo D-Sub Connectors Series

Series

Description

627C Series

627C
Vertical Combo D-Sub Connectors | Plug

627WC Series

627WC
Vertical Combo D-Sub Connectors | Waterproof | Plug

628C Series

628C
Vertical Combo D-Sub Connectors | Receptacle

628WC Series

628WC
Vertical Combo D-Sub Connector | Waterproof | Receptacle

629C Series

629C
Right Angle Combo D-Sub Connector | Plug

629WC Series

629WC
Right Angle Combo D-Sub Connectors | Waterproof | Plug

630C Series

630C
Right Angle Combo D-Sub Connectors | Receptacle

630WC Series

630WC
Right Angle Combo D-Sub Connectors | Waterproof | Receptacle




power combo D-sub connector

Power combo D-sub connectors provide the combination of power or coaxial contacts along with signal contacts installed into one connector. This style of connector can provide space savings on the PCB and I/O design and are widely used as an input/output connector interface.

Engineering options

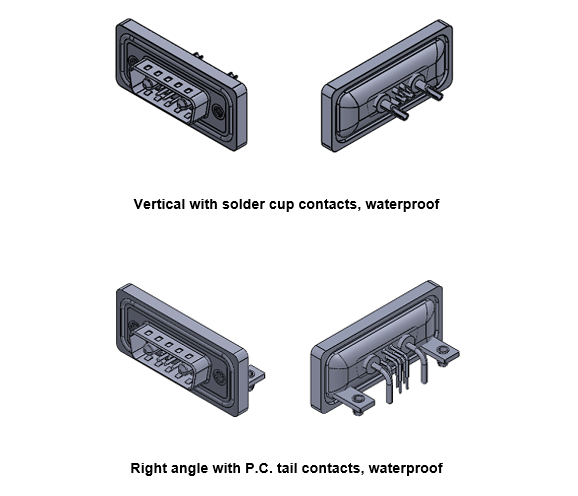

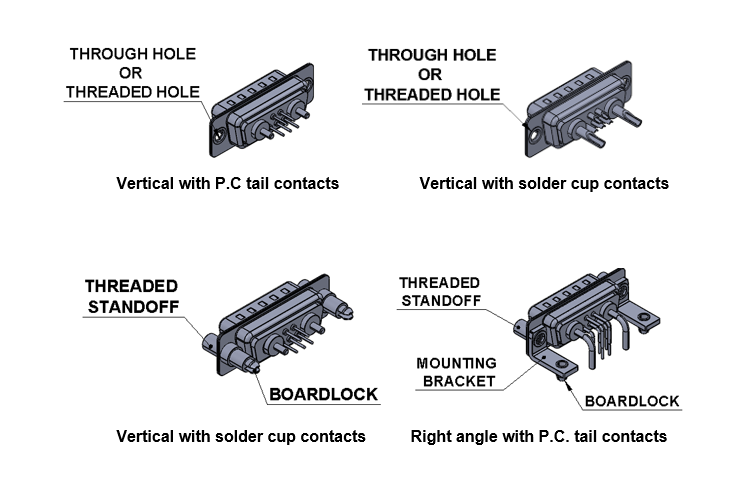

Power combo D-sub connectors are available in vertical or right-angle orientations, with PC tail or solder cup terminations. Power contacts are available in 10, 20, 30, or 40 amp versions and coaxial contacts with 50 or 75 ohm impedance ratings. Various mounting options for panel mount or connector mating include through holes, threaded holes, with or without standoffs, and with or without boardlocks. Waterproof versions are also available.

We continually update and advance our products to ensure that our customers have access to the latest and best products available. Contact us for additional information.
