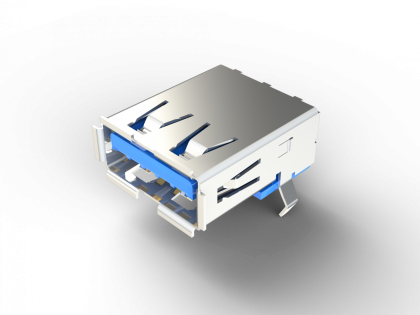

USB Connectors

USB Connectors

EDAC Standard USB's are available in all types A,B and C in vertical or right angle orientations. USB's combine data and power in a small package. Type C offers ten times the speed of conventional USB's plus cords will mate in either direction.



USB Connectors Brochure:

Interconnect Solutions Brochure:



USB Connectors Series

Series

Description

690A Series

690A
USB 2.0 TYPE-A RECEPTACLES - RIGHT ANGLE PCB

690B Series

690B
USB 3.0 TYPE-A RECEPTACLES - RIGHT ANGLE PCB

690C Series

690C
USB 2.0 TYPE-A RECEPTACLES - UPRIGHT RIGHT ANGLE PCB

690D Series

690D
USB 3.0 TYPE-A RECEPTACLES - UPRIGHT RIGHT ANGLE PCB

690E Series

690E
USB 2.0 TYPE-A RECEPTACLES - VERTICAL PCB

690F Series

690F
USB 3.0 TYPE-A RECEPTACLES - VERTICAL PCB

690G Series

690G
USB 2.0 TYPE-A RECEPTACLES - MID-MOUNT PCB

690H Series

690H
USB 3.0 TYPE-A RECEPTACLES - MID-MOUNT PCB

690J Series

690J
USB 2.0 TYPE-A RECEPTACLES - RIGHT ANGLE SMT

690L Series

690L
USB 2.0 TYPE-A RECEPTACLES - CABLE END SOLDER CUP

690M Series

690M
USB 3.0 TYPE-A RECEPTACLES - CABLE END SOLDER PAD

690N Series

690N
USB TYPE-A RECEPTACLES - DUAL STACK

690P Series

690P
USB TYPE-B RECEPTACLES - RIGHT ANGLE PCB

690Q Series

690Q
USB 2.0 TYPE-B RECEPTACLES - VERTICAL PCB

690S Series

690S
USB 2.0 TYPE-B RECEPTACLES - CABLE END SOLDER CUP

690T Series

690T
USB MINI & MICRO TYPE-B RECEPTACLES - RIGHT ANGLE SMT

691C Series

691C
USB 2.0 TYPE-A PLUGS - CABLE END SOLDER CUP

691E Series

691E
USB 2.0 TYPE-A PLUGS - CABLE END SOLDER PAD

691F Series

691F
USB TYPE-B PLUGS - CABLE END SOLDER CUP

698A Series

698A
USB TYPE-C RECEPTACLES - 6 PIN OPTION

698B Series

698B
USB TYPE-C RECEPTACLES - 16 PIN OPTION

698C Series

698C
USB TYPE-C RECEPTACLES - 24 PIN OPTION

699B Series

699B
USB TYPE-C PLUGS - 16 PIN OPTION

699C Series

699C
USB TYPE-C PLUGS - 24 PIN OPTION
