The EDAC E-PIN male headers mate with the E-Socket receptacles providing a reliable and economical BTB connection. Available in multiple contact spacing options, in single, two or three row configurations. Termination styles include vertical or right angle through hole, and SMT. Contacts can be supplied with tin or various gold plating thicknesses. Available with customized mating heights, special bends, and much more.
Pin Header Connectors Series
Series |
Description |
|---|---|
151 Series
|
Pin Headers |
What is a Pin Header connector?

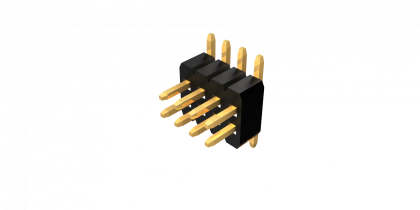

A pin header connector is a male (plug) connector with square pins which are molded into a plastic insulator. Most often manufactured with single or dual rows, pin headers are also available with 3 rows or more. Pin header connectors are typically mated with a socket header (receptacle) providing a reliable and economical board-to-board connection.
Engineering options

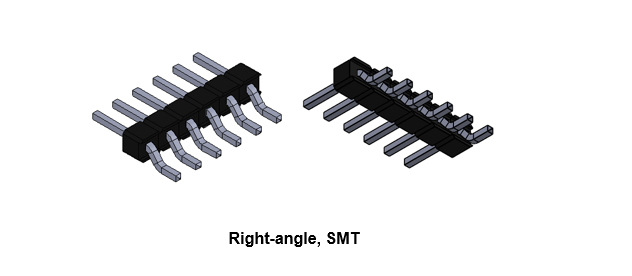

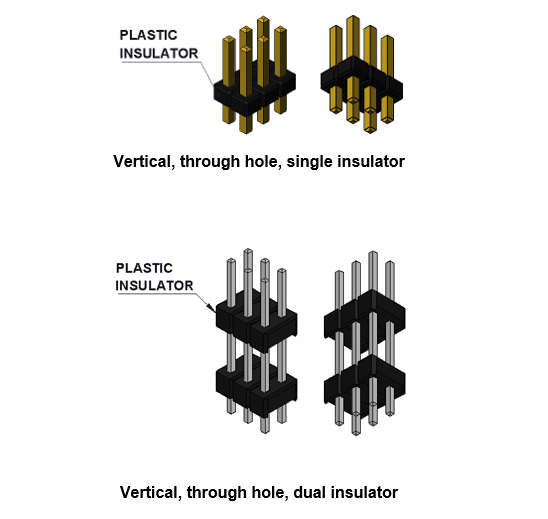

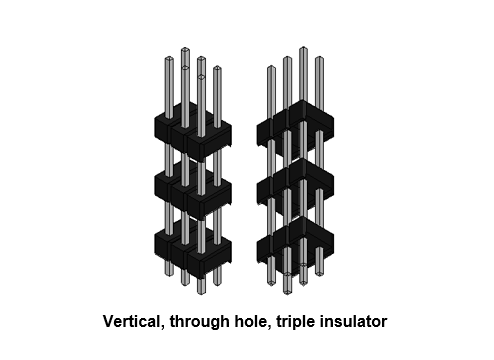

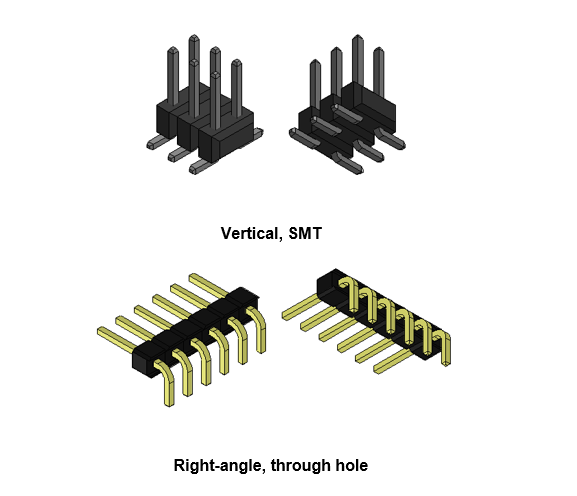

Pin header connectors are available in vertical or right-angle orientations. Common pitch options are 1.00mm, 1.27mm, 2.00mm, and 2.54mm. These connectors can be supplied with PC tail (through hole) or SMT (surface mount) terminations. Alignment posts help to facilitate placement of SMT parts onto the PCB prior to soldering. Single, dual, or triple insulators options are available.
We continually update and advance our products to ensure that our customers have access to the latest and best products available. Contact us for additional information.
