Card edge connector termination and mounting options

Card edge contact termination options

The contact termination determines how the contacts will be connected to a PCB, wire, or extender board.

contact termination Engineering options

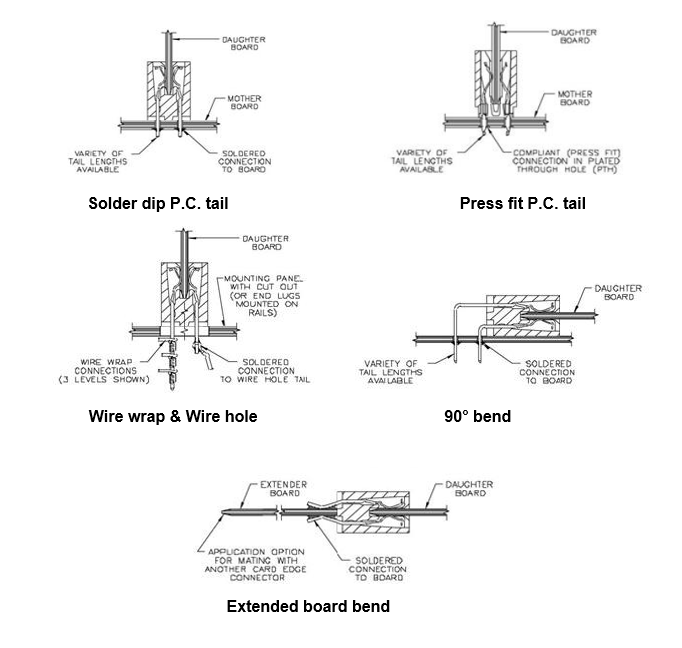

Edge connector contact terminations

Card edge mounting option

The mounting option will determine how the card edge connector will be fixed onto the P.C. board or other rigid surface such as a card rack.

mounting Engineering options

Shown below are different options to mount a card edge connector including, through hole, floating eyelets, threaded inserts, side mounting holes and no mounting lugs.

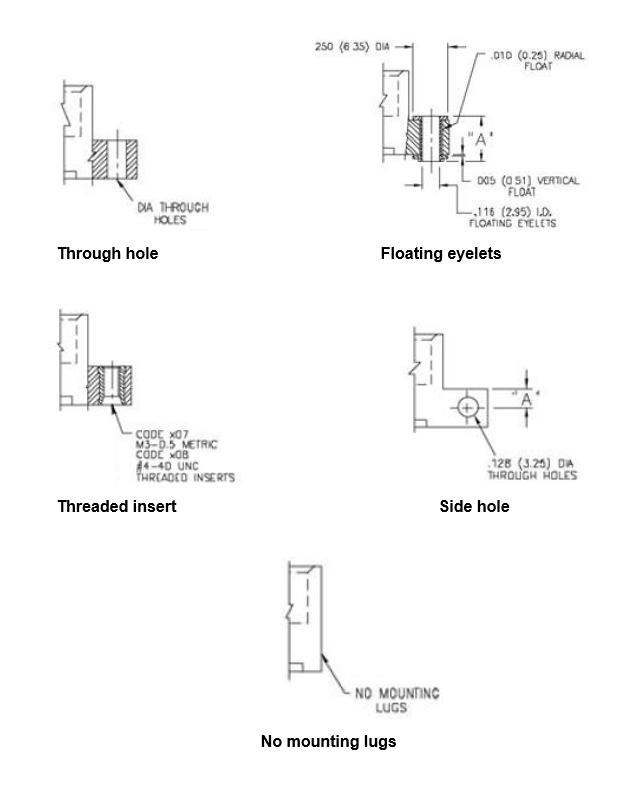

Edge connector mounting options
