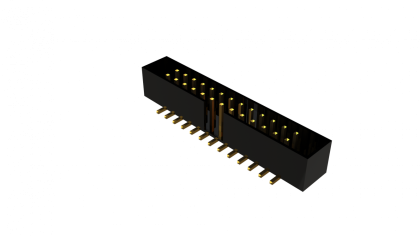

Box Header Connectors

Box Header Connectors

EDAC Box headers are widely used for board to board or wire to board connections. Right angle, vertical and even custom bends are available. The breakaway design allows for separation into smaller units.



Box Header Connectors Brochure:

Interconnect Solutions Brochure:



Box Header Connectors Series

Series

Description

150 Series

150
Box Headers




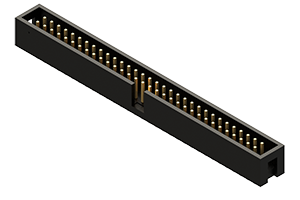

What is a Box Header connector?

A box header connector is a male connector with exposed pins encompassed by side dividers which are molded onto a plastic base. Box headers are manufactured with a minimum of two pins in either single or double rows. They are widely used for board-to-board or wire-to-board connections.

Engineering options

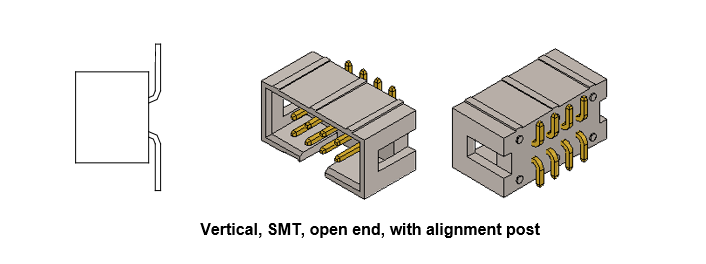

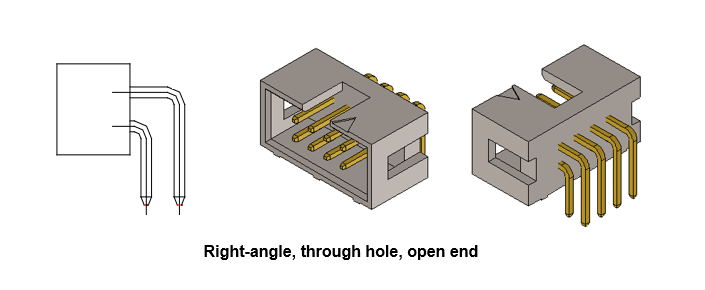

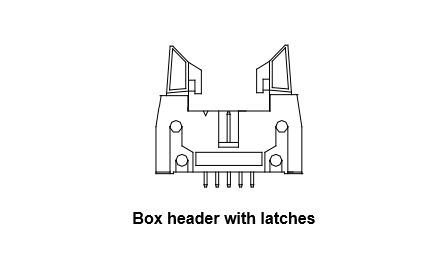

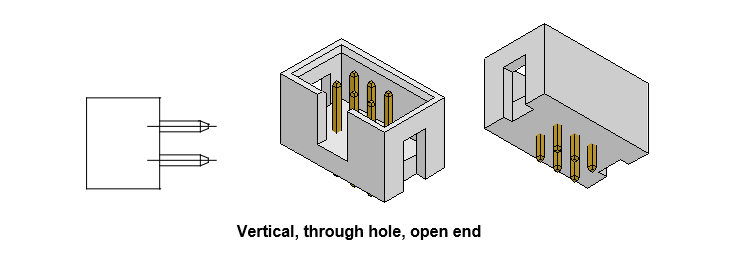

Box header connectors are available with PC tail (through hole) terminations in vertical or right-angle orientations. SMT tails are also available, with or without alignment posts. Alignment posts help facilitate the placement of SMT parts onto the PCB prior to soldering. Other options include slots for polarization, latches, and open or closed ends.

We continually update and advance our products to ensure that our customers have access to the latest and best products available. Contact us for additional information.
