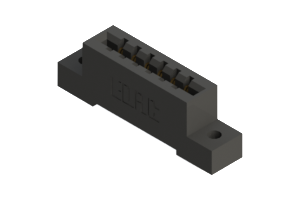

Features
- 0.156" (3.96mm) Contact Spacing by 0.200" (5.08mm) Row Spacing
- Accepts .062" (1.57mm) Nominal Thickness P.C. Board
- High Profile Insulator Body, .600" (15.24mm)
- Card Slot Depth of .330" (8.38mm)
- Contact Termination Options include P.C. Tail, Wire Hole, Wire Wrap, 90 and Extender Board Bends
- Single or Dual Row Configurations
- Large Variety of Mounting Options, Flush or Offset Lugs
- Accepts between Contact and In-Contact Polarizing Keys
- Pre-assembled Card Guides are available
- RoHS Compliant, UL Certified
Specifications
- Insulator Material: (837: Diallyl Phthalate 887: Polyphenylene sulfide) , UL 94V-0
- Contact Material: Copper Alloy
- Contact Plating: Gold Plating on mating area and Tin Plating on tails with Nickel underplating all over
- Current Rating: 3 Ampere
- Contact Resistance: 10 milliohms maximum
- Dielectric Withstand Voltage: 1800V AC rms at sea level between adjacent contacts
- Insulation Resistance: 5000 Megaohms minimum
- Operating Temperature: -40°C to +125°C
- 16oz (4.45N) maximum per contact pair when tested with .070" (1.78mm) thick gauge
- Withdrawal Force: 1oz (0.28N) minimum per contact pair when tested with .054" (1.37mm) thick gauge
