892 Series

Features

  • .100" (2.54mm) Contact Spacing x .200" (5.08mm) Row Spacing
  • Accepts .062" (1.57mm) Nominal Thickness P.C. Board
  • High Profile Insulator Body, .590" (14.99mm)
  • Contact Termination Options include P.C. Tail, Wire Hole, Wire Wrap, 90 and Extender Board Bends
  • Single or Dual Row Configurations
  • Large Variety of Mounting Options, Flush or Offset Lugs
  • Accepts In-Contact Polarizing Keys
  • RoHS Compliant, UL Certified


Specifications

  • Insulator Material: (842: Diallyl Phthalate 892: Polyphenylene sulfide) , UL 94V-0
  • Contact Material: Copper Alloy
  • Contact Plating: Gold Plating on mating area and Tin Plating on tails with Nickel underplating all over
  • Current Rating: 3 Amperes
  • Contact Resistance: 10 milliohms maximum
  • Dielectric Withstand Voltage: 1200V AC rms at sea level between adjacent contacts
  • Insulation Resistance: 5000 Megaohms minimum
  • Operating Temperature: -40°C to +125°C
  • 16oz (4.45N) maximum per contact pair when tested with .070" (1.78mm) thick gauge
  • Withdrawal Force: 1oz (0.28N) minimum per contact pair when tested with .054" (1.37mm) thick gauge



Notes

Ordering Guide:


892

EDAC Card Edge Connectors
EDAC Card Edge Connectors
EDAC Custom Connectors | Card Edge
EDAC Custom Connectors | Card Edge
EDAC Card Edge Connector | Wire Wrap Terminals
EDAC Card Edge Connector | Wire Wrap Terminals
EDAC Card Edge Connector | Wire Hole Terminals
EDAC Card Edge Connector | Wire Hole Terminals
EDAC Custom Interconnect Solutions
EDAC Custom Interconnect Solutions

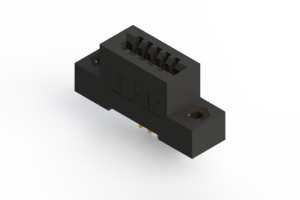

High Temp Card Edge Connector | Black | 0.100" (2.54mm) Pitch | 0.200" (5.08mm) Row Spacing | Deep Card Slot
