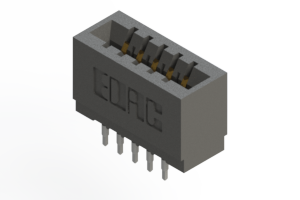

EDAC offers a very broad range of pressfit card edge connectors. Our Edgefit product utilizes a contact design that allows for ease of assembly into the PCB with the use of simple flat rock tooling. Once installed, this solderless connection provides superior shock and vibration resistance while also providing significant labour savings.
Pressfit Card Edge Connectors Brochure:
Pressfit Card Edge Connectors Series
Series |
Description |
|---|---|
717 Series
|
Pressfit Card Edge Connector | Black | 0.156" (3.96mm) Pitch | 0.200" (5.08mm) Row Spacing | Low Profile Insulator |
725 Series
|
Pressfit Card Edge Connector | Black | 0.100" (2.54mm) Pitch | 0.200" (5.08mm) Row Spacing | Low Profile Insulator |
737 Series
|
Pressfit Card Edge Connector | Black | 0.156" (3.96mm) Pitch | 0.200" (5.08mm) Row Spacing |
745 Series
|
Pressfit Card Edge Connector | Black | 0.100" (2.54mm) | 0.200" (5.08mm) Row Spacing |
746 Series
|
Pressfit Card Edge Connector | Black | 0.125" (3.175mm) Pitch | 0.250" (6.35mm) Row Spacing |
What is a press-fit connector?

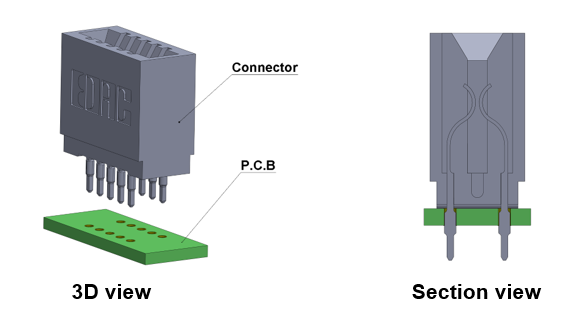

The press-fit card edge connector allows a mechanical and electrical connection, without soldering. Press-fit card edge connector are pressed through holes on a printed circuit board (PCB). This principle is an alternative to soldering and offers a lot of advantages over its more conventional counterpart. By using press-fit connectors, you will eliminate negative points that come along with soldering: thermal stress on the PCB, solder joints, shorts (caused by solder bridging), and the elimination of lead-free solder. Press-fit card edge connector are also easily repaired, more eco-friendly, and cost effective.
Engineering options.
We can find different types of press-fit connectors that include those with solid pins and compliant pins. The solid pin will not deform during the insertion on the PCB. The compliant pin will compress during insertion that put less pressure on the PCB and less force is needed for the insertion.
We continually update and advance our products to ensure that our customers have access to the latest and best products available. Contact us for additional information.
