D-Sub Connector Contacts



D-Sub connector contacts options

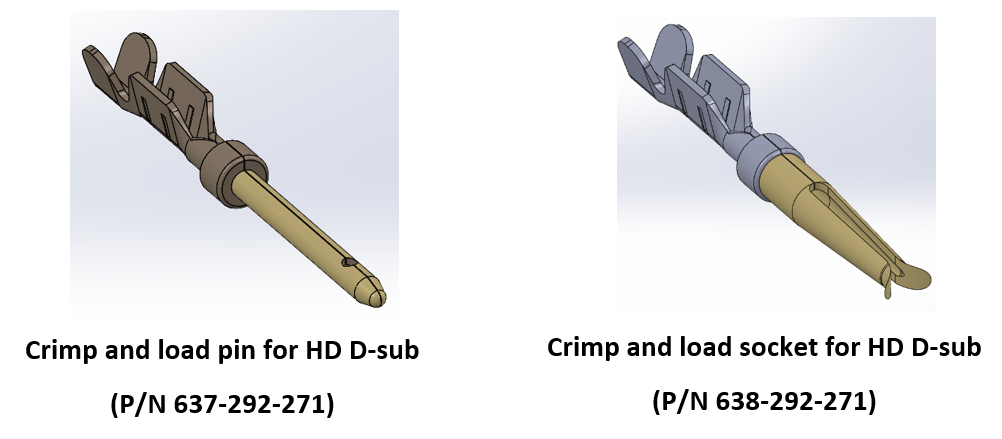

D-sub connector crimp contacts are available in both standard density (DB) and high density (HD) D-subs. Due to the characteristic of HD D-sub connectors, which contain more positions/contacts than the DB D-sub in the same size shield, the diameter of the HD D-sub contact is smaller than the DB D-sub contact. Crimp and load pin (P/N 637-292-271) and socket (P/N 638-292-271) are applicable to HD D-sub. The diameter of the pin is 0.76mm.

Receptacle and Plug Crimp and Load D-Sub Contact

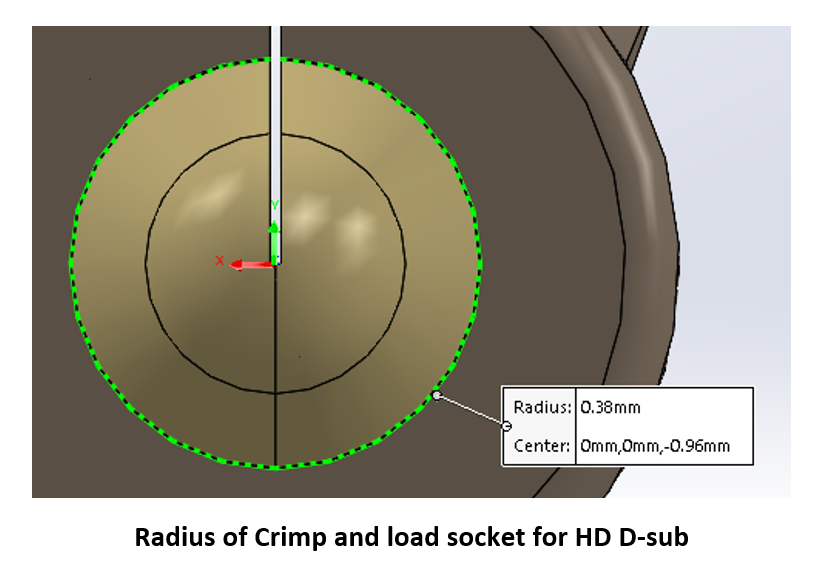

Radius for high density D-Sub Contact

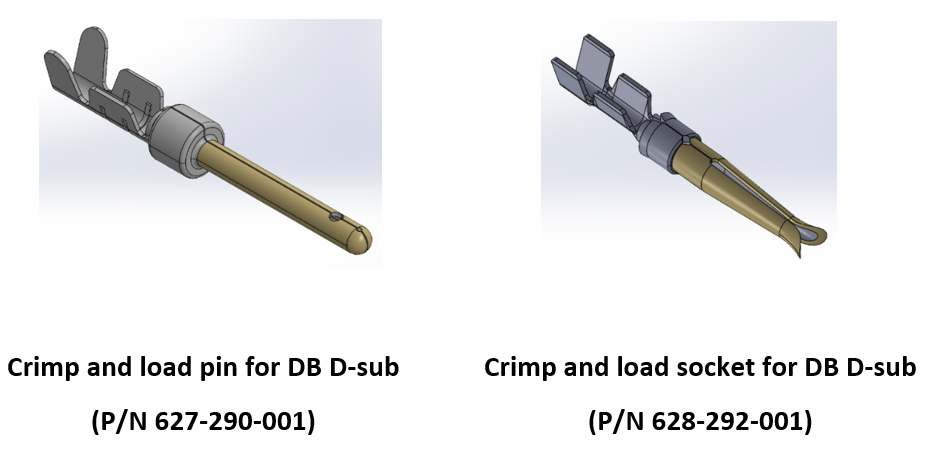

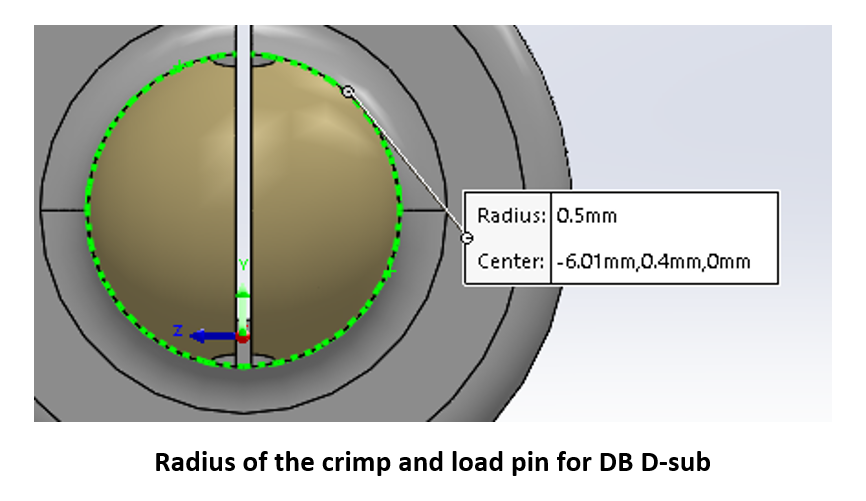

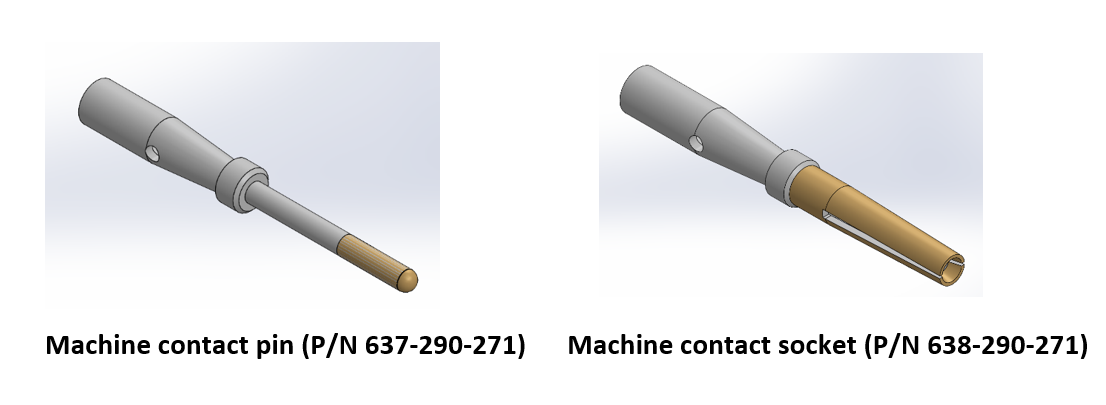

Crimp and load pin (P/N 627-290-001) and socket (P/N 628-292-001) are suitable to a DB D-sub. The diameter of the pin is 1mm. Both pin (P/N 637-290-271) and socket (P/N 638-290-271) of the Machine contact are also available for D-sub.



We continually update and advance our products to ensure that our customers have access to the latest and best products available. Contact us for additional information.
