857 Series

Features

  • 0.156" (3.96mm) Contact Spacing by 0.200" (5.08mm) Row Spacing
  • Accepts .062" (1.57mm) Nominal Thickness P.C. Board
  • Low Profile Insulator Body, 0.473" (12.01mm)
  • Contact Termination Options include P.C. Tail, Wire Hole, Wire Wrap, 90 and Extender Board Bends
  • Single or Dual Row Configurations
  • Large Variety of Mounting Options
  • Accepts between Contact and In-Contact Polarizing Keys
  • RoHS Compliant UL Certified


Specifications

  • Insulator Material: (807: Diallyl Phthalate 857: Polyphenylene sulfide) , UL 94V-0
  • Contact Material: Copper Alloy
  • Contact Plating: Gold Plating on mating area and Tin Plating on tails with Nickel underplating all over
  • Current Rating: 5A Continuous
  • Contact Resistance: 10 milliohms maximum
  • Withstand Voltage: 1800V AC rms at sea level between adjacent contacts
  • Insulation Resistance: 5000 Megaohms minimum
  • Operating Temperature: -40°C to +125°C
  • 16oz (4.45N) maximum per contact pair when tested with .070" (1.78mm) thick gauge
  • Withdrawal Force: 1oz (0.28N) minimum per contact pair when tested with .054" (1.37mm) thick gauge



Notes

Ordering Guide:


857


High Temp Card Edge Connector 0.156" (3.96mm) Pitch


OR

Loading Parts


Part #

Position

Gender

Material

Color

Pitch

Insulator Style

Rows

Contact Description

Contact Tail Size

Contact Tail Length

Mounting Option

Datasheet

3D Model

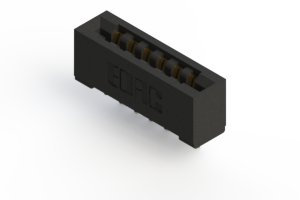

857-006-401-101 - High Temp Card Edge Connector
857-006-401-101 - High Temp Card Edge Connector
857-006-401-101 6 Female Polyphenylene sulfide Black .156" (3.96mm) Single Row Wire Hole .089" x .014" (2.29mm x 0.36mm) .213'' (5.41mm) No Mounting Lugs
857-006-401-102 - High Temp Card Edge Connector
857-006-401-102 - High Temp Card Edge Connector
857-006-401-102 6 Female Polyphenylene sulfide Black .156" (3.96mm) Single Row Wire Hole .089" x .014" (2.29mm x 0.36mm) .213'' (5.41mm) .128'' (3.25mm) Dia. Mounting Holes
857-006-401-103 - High Temp Card Edge Connector
857-006-401-103 - High Temp Card Edge Connector
857-006-401-103 6 Female Polyphenylene sulfide Black .156" (3.96mm) Single Row Wire Hole .089" x .014" (2.29mm x 0.36mm) .213'' (5.41mm) .116'' (2.95mm) I.D. Floating Eyelets
857-006-401-104 - High Temp Card Edge Connector
857-006-401-104 - High Temp Card Edge Connector
857-006-401-104 6 Female Polyphenylene sulfide Black .156" (3.96mm) Single Row Wire Hole .089" x .014" (2.29mm x 0.36mm) .213'' (5.41mm) .156'' (3.96mm) Dia. Mounting Holes
857-006-401-107 - High Temp Card Edge Connector
857-006-401-107 - High Temp Card Edge Connector
857-006-401-107 6 Female Polyphenylene sulfide Black .156" (3.96mm) Single Row Wire Hole .089" x .014" (2.29mm x 0.36mm) .213'' (5.41mm) M3-0.5 Metric Threaded Inserts
857-006-401-108 - High Temp Card Edge Connector
857-006-401-108 - High Temp Card Edge Connector
857-006-401-108 6 Female Polyphenylene sulfide Black .156" (3.96mm) Single Row Wire Hole .089" x .014" (2.29mm x 0.36mm) .213'' (5.41mm) #4-40 Unified Threaded Inserts
857-006-401-112 - High Temp Card Edge Connector
857-006-401-112 - High Temp Card Edge Connector
857-006-401-112 6 Female Polyphenylene sulfide Black .156" (3.96mm) Single Row Wire Hole .089" x .014" (2.29mm x 0.36mm) .213'' (5.41mm) .128'' (3.25mm) Dia. Side Mounting Holes
857-006-405-101 - High Temp Card Edge Connector
857-006-405-101 - High Temp Card Edge Connector
857-006-405-101 6 Female Polyphenylene sulfide Black .156" (3.96mm) Single Row Wire Hole .087" x .013" (2.21mm x 0.33mm) .282'' (7.16mm) No Mounting Lugs
857-006-405-102 - High Temp Card Edge Connector
857-006-405-102 - High Temp Card Edge Connector
857-006-405-102 6 Female Polyphenylene sulfide Black .156" (3.96mm) Single Row Wire Hole .087" x .013" (2.21mm x 0.33mm) .282'' (7.16mm) .128'' (3.25mm) Dia. Mounting Holes
857-006-405-103 - High Temp Card Edge Connector
857-006-405-103 - High Temp Card Edge Connector
857-006-405-103 6 Female Polyphenylene sulfide Black .156" (3.96mm) Single Row Wire Hole .087" x .013" (2.21mm x 0.33mm) .282'' (7.16mm) .116'' (2.95mm) I.D. Floating Eyelets
857-006-405-104 - High Temp Card Edge Connector
857-006-405-104 - High Temp Card Edge Connector
857-006-405-104 6 Female Polyphenylene sulfide Black .156" (3.96mm) Single Row Wire Hole .087" x .013" (2.21mm x 0.33mm) .282'' (7.16mm) .156'' (3.96mm) Dia. Mounting Holes
857-006-405-107 - High Temp Card Edge Connector
857-006-405-107 - High Temp Card Edge Connector
857-006-405-107 6 Female Polyphenylene sulfide Black .156" (3.96mm) Single Row Wire Hole .087" x .013" (2.21mm x 0.33mm) .282'' (7.16mm) M3-0.5 Metric Threaded Inserts
857-006-405-108 - High Temp Card Edge Connector
857-006-405-108 - High Temp Card Edge Connector
857-006-405-108 6 Female Polyphenylene sulfide Black .156" (3.96mm) Single Row Wire Hole .087" x .013" (2.21mm x 0.33mm) .282'' (7.16mm) #4-40 Unified Threaded Inserts
857-006-405-112 - High Temp Card Edge Connector
857-006-405-112 - High Temp Card Edge Connector
857-006-405-112 6 Female Polyphenylene sulfide Black .156" (3.96mm) Single Row Wire Hole .087" x .013" (2.21mm x 0.33mm) .282'' (7.16mm) .128'' (3.25mm) Dia. Side Mounting Holes
857-006-421-101 - High Temp Card Edge Connector
857-006-421-101 - High Temp Card Edge Connector
857-006-421-101 6 Female Polyphenylene sulfide Black .156" (3.96mm) Single Row P.C. Tail .046" x .014" (1.17mm x 0.36mm) .213'' (5.41mm) No Mounting Lugs
857-006-421-102 - High Temp Card Edge Connector
857-006-421-102 - High Temp Card Edge Connector
857-006-421-102 6 Female Polyphenylene sulfide Black .156" (3.96mm) Single Row P.C. Tail .046" x .014" (1.17mm x 0.36mm) .213'' (5.41mm) .128'' (3.25mm) Dia. Mounting Holes
857-006-421-103 - High Temp Card Edge Connector
857-006-421-103 - High Temp Card Edge Connector
857-006-421-103 6 Female Polyphenylene sulfide Black .156" (3.96mm) Single Row P.C. Tail .046" x .014" (1.17mm x 0.36mm) .213'' (5.41mm) .116'' (2.95mm) I.D. Floating Eyelets
857-006-421-104 - High Temp Card Edge Connector
857-006-421-104 - High Temp Card Edge Connector
857-006-421-104 6 Female Polyphenylene sulfide Black .156" (3.96mm) Single Row P.C. Tail .046" x .014" (1.17mm x 0.36mm) .213'' (5.41mm) .156'' (3.96mm) Dia. Mounting Holes
857-006-421-107 - High Temp Card Edge Connector
857-006-421-107 - High Temp Card Edge Connector
857-006-421-107 6 Female Polyphenylene sulfide Black .156" (3.96mm) Single Row P.C. Tail .046" x .014" (1.17mm x 0.36mm) .213'' (5.41mm) M3-0.5 Metric Threaded Inserts
857-006-421-108 - High Temp Card Edge Connector
857-006-421-108 - High Temp Card Edge Connector
857-006-421-108 6 Female Polyphenylene sulfide Black .156" (3.96mm) Single Row P.C. Tail .046" x .014" (1.17mm x 0.36mm) .213'' (5.41mm) #4-40 Unified Threaded Inserts
857-006-421-112 - High Temp Card Edge Connector
857-006-421-112 - High Temp Card Edge Connector
857-006-421-112 6 Female Polyphenylene sulfide Black .156" (3.96mm) Single Row P.C. Tail .046" x .014" (1.17mm x 0.36mm) .213'' (5.41mm) .128'' (3.25mm) Dia. Side Mounting Holes
857-006-425-101 - High Temp Card Edge Connector
857-006-425-101 - High Temp Card Edge Connector
857-006-425-101 6 Female Polyphenylene sulfide Black .156" (3.96mm) Single Row P.C. Tail .046" x .013" (1.17mm x 0.33mm) .213'' (5.41mm) No Mounting Lugs
857-006-425-102 - High Temp Card Edge Connector
857-006-425-102 - High Temp Card Edge Connector
857-006-425-102 6 Female Polyphenylene sulfide Black .156" (3.96mm) Single Row P.C. Tail .046" x .013" (1.17mm x 0.33mm) .213'' (5.41mm) .128'' (3.25mm) Dia. Mounting Holes
857-006-425-103 - High Temp Card Edge Connector
857-006-425-103 - High Temp Card Edge Connector
857-006-425-103 6 Female Polyphenylene sulfide Black .156" (3.96mm) Single Row P.C. Tail .046" x .013" (1.17mm x 0.33mm) .213'' (5.41mm) .116'' (2.95mm) I.D. Floating Eyelets
857-006-425-104 - High Temp Card Edge Connector
857-006-425-104 - High Temp Card Edge Connector
857-006-425-104 6 Female Polyphenylene sulfide Black .156" (3.96mm) Single Row P.C. Tail .046" x .013" (1.17mm x 0.33mm) .213'' (5.41mm) .156'' (3.96mm) Dia. Mounting Holes
857-006-425-107 - High Temp Card Edge Connector
857-006-425-107 - High Temp Card Edge Connector
857-006-425-107 6 Female Polyphenylene sulfide Black .156" (3.96mm) Single Row P.C. Tail .046" x .013" (1.17mm x 0.33mm) .213'' (5.41mm) M3-0.5 Metric Threaded Inserts
857-006-425-108 - High Temp Card Edge Connector
857-006-425-108 - High Temp Card Edge Connector
857-006-425-108 6 Female Polyphenylene sulfide Black .156" (3.96mm) Single Row P.C. Tail .046" x .013" (1.17mm x 0.33mm) .213'' (5.41mm) #4-40 Unified Threaded Inserts
857-006-425-112 - High Temp Card Edge Connector
857-006-425-112 - High Temp Card Edge Connector
857-006-425-112 6 Female Polyphenylene sulfide Black .156" (3.96mm) Single Row P.C. Tail .046" x .013" (1.17mm x 0.33mm) .213'' (5.41mm) .128'' (3.25mm) Dia. Side Mounting Holes
857-006-427-101 - High Temp Card Edge Connector
857-006-427-101 - High Temp Card Edge Connector
857-006-427-101 6 Female Polyphenylene sulfide Black .156" (3.96mm) Single Row P.C. Tail .046" x .013" (1.17mm x 0.33mm) .358'' (9.09mm) No Mounting Lugs
857-006-427-102 - High Temp Card Edge Connector
857-006-427-102 - High Temp Card Edge Connector
857-006-427-102 6 Female Polyphenylene sulfide Black .156" (3.96mm) Single Row P.C. Tail .046" x .013" (1.17mm x 0.33mm) .358'' (9.09mm) .128'' (3.25mm) Dia. Mounting Holes
857-006-427-103 - High Temp Card Edge Connector
857-006-427-103 - High Temp Card Edge Connector
857-006-427-103 6 Female Polyphenylene sulfide Black .156" (3.96mm) Single Row P.C. Tail .046" x .013" (1.17mm x 0.33mm) .358'' (9.09mm) .116'' (2.95mm) I.D. Floating Eyelets
857-006-427-104 - High Temp Card Edge Connector
857-006-427-104 - High Temp Card Edge Connector
857-006-427-104 6 Female Polyphenylene sulfide Black .156" (3.96mm) Single Row P.C. Tail .046" x .013" (1.17mm x 0.33mm) .358'' (9.09mm) .156'' (3.96mm) Dia. Mounting Holes
857-006-427-107 - High Temp Card Edge Connector
857-006-427-107 - High Temp Card Edge Connector
857-006-427-107 6 Female Polyphenylene sulfide Black .156" (3.96mm) Single Row P.C. Tail .046" x .013" (1.17mm x 0.33mm) .358'' (9.09mm) M3-0.5 Metric Threaded Inserts
857-006-427-108 - High Temp Card Edge Connector
857-006-427-108 - High Temp Card Edge Connector
857-006-427-108 6 Female Polyphenylene sulfide Black .156" (3.96mm) Single Row P.C. Tail .046" x .013" (1.17mm x 0.33mm) .358'' (9.09mm) #4-40 Unified Threaded Inserts
857-006-427-112 - High Temp Card Edge Connector
857-006-427-112 - High Temp Card Edge Connector
857-006-427-112 6 Female Polyphenylene sulfide Black .156" (3.96mm) Single Row P.C. Tail .046" x .013" (1.17mm x 0.33mm) .358'' (9.09mm) .128'' (3.25mm) Dia. Side Mounting Holes
857-006-431-101 - High Temp Card Edge Connector
857-006-431-101 - High Temp Card Edge Connector
857-006-431-101 6 Female Polyphenylene sulfide Black .156" (3.96mm) Single Row P.C. Tail .023" x .013" (0.58mm x 0.33mm) .213'' (5.41mm) No Mounting Lugs
857-006-431-102 - High Temp Card Edge Connector
857-006-431-102 - High Temp Card Edge Connector
857-006-431-102 6 Female Polyphenylene sulfide Black .156" (3.96mm) Single Row P.C. Tail .023" x .013" (0.58mm x 0.33mm) .213'' (5.41mm) .128'' (3.25mm) Dia. Mounting Holes
857-006-431-103 - High Temp Card Edge Connector
857-006-431-103 - High Temp Card Edge Connector
857-006-431-103 6 Female Polyphenylene sulfide Black .156" (3.96mm) Single Row P.C. Tail .023" x .013" (0.58mm x 0.33mm) .213'' (5.41mm) .116'' (2.95mm) I.D. Floating Eyelets
857-006-431-104 - High Temp Card Edge Connector
857-006-431-104 - High Temp Card Edge Connector
857-006-431-104 6 Female Polyphenylene sulfide Black .156" (3.96mm) Single Row P.C. Tail .023" x .013" (0.58mm x 0.33mm) .213'' (5.41mm) .156'' (3.96mm) Dia. Mounting Holes
857-006-431-107 - High Temp Card Edge Connector
857-006-431-107 - High Temp Card Edge Connector
857-006-431-107 6 Female Polyphenylene sulfide Black .156" (3.96mm) Single Row P.C. Tail .023" x .013" (0.58mm x 0.33mm) .213'' (5.41mm) M3-0.5 Metric Threaded Inserts
857-006-431-108 - High Temp Card Edge Connector
857-006-431-108 - High Temp Card Edge Connector
857-006-431-108 6 Female Polyphenylene sulfide Black .156" (3.96mm) Single Row P.C. Tail .023" x .013" (0.58mm x 0.33mm) .213'' (5.41mm) #4-40 Unified Threaded Inserts
857-006-431-112 - High Temp Card Edge Connector
857-006-431-112 - High Temp Card Edge Connector
857-006-431-112 6 Female Polyphenylene sulfide Black .156" (3.96mm) Single Row P.C. Tail .023" x .013" (0.58mm x 0.33mm) .213'' (5.41mm) .128'' (3.25mm) Dia. Side Mounting Holes
857-006-441-101 - High Temp Card Edge Connector
857-006-441-101 - High Temp Card Edge Connector
857-006-441-101 6 Female Polyphenylene sulfide Black .156" (3.96mm) Single Row Wire Wrap .046" x .014" (1.17mm x 0.36mm) .495'' (12.57mm) No Mounting Lugs
857-006-441-102 - High Temp Card Edge Connector
857-006-441-102 - High Temp Card Edge Connector
857-006-441-102 6 Female Polyphenylene sulfide Black .156" (3.96mm) Single Row Wire Wrap .046" x .014" (1.17mm x 0.36mm) .495'' (12.57mm) .128'' (3.25mm) Dia. Mounting Holes
857-006-441-103 - High Temp Card Edge Connector
857-006-441-103 - High Temp Card Edge Connector
857-006-441-103 6 Female Polyphenylene sulfide Black .156" (3.96mm) Single Row Wire Wrap .046" x .014" (1.17mm x 0.36mm) .495'' (12.57mm) .116'' (2.95mm) I.D. Floating Eyelets
857-006-441-104 - High Temp Card Edge Connector
857-006-441-104 - High Temp Card Edge Connector
857-006-441-104 6 Female Polyphenylene sulfide Black .156" (3.96mm) Single Row Wire Wrap .046" x .014" (1.17mm x 0.36mm) .495'' (12.57mm) .156'' (3.96mm) Dia. Mounting Holes
857-006-441-107 - High Temp Card Edge Connector
857-006-441-107 - High Temp Card Edge Connector
857-006-441-107 6 Female Polyphenylene sulfide Black .156" (3.96mm) Single Row Wire Wrap .046" x .014" (1.17mm x 0.36mm) .495'' (12.57mm) M3-0.5 Metric Threaded Inserts
857-006-441-108 - High Temp Card Edge Connector
857-006-441-108 - High Temp Card Edge Connector
857-006-441-108 6 Female Polyphenylene sulfide Black .156" (3.96mm) Single Row Wire Wrap .046" x .014" (1.17mm x 0.36mm) .495'' (12.57mm) #4-40 Unified Threaded Inserts
857-006-441-112 - High Temp Card Edge Connector
857-006-441-112 - High Temp Card Edge Connector
857-006-441-112 6 Female Polyphenylene sulfide Black .156" (3.96mm) Single Row Wire Wrap .046" x .014" (1.17mm x 0.36mm) .495'' (12.57mm) .128'' (3.25mm) Dia. Side Mounting Holes
857-006-445-101 - High Temp Card Edge Connector
857-006-445-101 - High Temp Card Edge Connector
857-006-445-101 6 Female Polyphenylene sulfide Black .156" (3.96mm) Single Row Wire Wrap .046" x .013" (1.17mm x 0.33mm) .708'' (17.98mm) No Mounting Lugs
