273 Series

Features

  • Data rate: 16 Gbps
  • Number of contacts: 29 and 68
  • Available in Right Angle SMT, Vertical SMT, and Vertical Press-fit
  • Available in receptacle and plug type
  • SAS 3.0 and PCIe 3.0 Compliant
  • Application: Server, Data storage, Switch


Specifications

  • Housing Material: High Temperature Thermoplastic UL-94V-0
  • Contact Material: Copper Alloy
  • Contact Plating: 30u Gold Plating
  • Contact Resistance: 30 m? Maximum
  • Dielectric Withstand Voltage: 500 V AC for 60 seconds
  • Insulation Resistance: 1000 M? Minimum
  • -55°C to +80°C
  • Mating Force: 29 Pin Connector: 25 N Maximum, 68 Pin Connector: 59 N Maximum
  • Unmating Force: 29 Pin Connector: 5 N Minimum, 68 Pin Connector: 12 N Minimum




Notes

Ordering Guide:


273

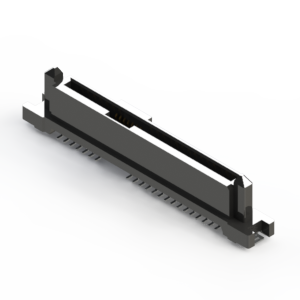

High Speed Card Edge Connectors | SAS Connector 1.27mm Signal Pitch 0.80mm SCSI Pitch | Receptacle
