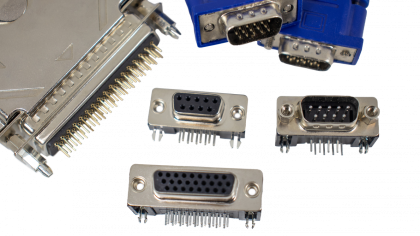

D-Sub Connectors

EDAC offers an extensive range of industry standard D-Subminiature connectors. Our D-Sub+ family are available in standard density with 9, 15, 25, 37, and 50 contacts or high density versions with 15, 26, 44, 62 and 78 contacts. Vertical and right angle orientations, along with a variety of termination, plating and mounting options are available. They’re also available in a stacked configuration.

Search Parts:

Check Distributor Stock

Highlights

D-sub connectors in standard, video and high density formats
From 9 to 50 pins (Standard), 15 to 78 pins (Hi-Density) or 29 pin (DVI)
Wide variety of footprints in vertical or right angle through hole PCB styles
Gold flash or gold plated contact surfaces, machined contact versions available
Metal shells provide EMI and RFI shielding
Plastic / metal or all metal versions available
Dual port stacked right angle connectors available, with matched or mixed connectors
Digital Video (DVI) and VESA / VGA styles available

D-Sub Connector Brochure:

Interconnect Solutions Brochure:

French Interconnect Solutions Connector Brochure

D-Sub Connectors

D-Sub Connectors Machined D-Sub Connectors Power Combo D-Sub Connectors Parallel Port D-Sub Connectors Waterproof D-Sub Connectors DB9 Connector DB15 Connector DB25 Connector Vertical PCB D-Sub Connector D-Sub Panel Cut-outs Cable Wire D-Sub Connector PCB D-Sub Connector Right-angle PCB D-Sub Connector Backshells or Hoods, and Caps for D-Sub Connectors D-Sub Connector Housings D-Sub Connector Contacts

D-Sub Connectors

Series	Description
621 Series	D-Sub Connectors \| Two Contact Rows with .318"(8.08mm) Footprint Right Angle Bend \| Plug
622 Series	D-Sub Connectors \| Two Contact Rows with .318"(8.08mm) Footprint Right Angle Bend \| Receptacle
623 Series	D-Sub Connectors \| Two Contact Rows with .197"(5.00mm) Footprint Right Angle Bend \| Plug
624 Series	D-Sub Connectors \| Two Contact Rows with .197"(5.00mm) Footprint Right Angle Bend \| Receptacle
625 Series	D-Sub Connectors \| Two Contact Rows with .584"(14.84mm) Footprint Right Angle Bend \| Plug
626 Series	D-Sub Connectors \| Two Contact Rows with .584"(14.84mm) Footprint Right Angle Bend \| Receptacle
627 (Metal) Series	D-Sub Connectors \| 0.109" (2.77mm) Contact Spacing x 0.112" (2.84mm) Row Spacing \| Vertical \| Plug \| Metal Body
627 (Plastic) Series	D-Sub Connectors \| 0.109" (2.77mm) Contact Spacing x 0.112" (2.84mm) Row Spacing \| Vertical \| Plug \| Plastic Body
628 (Metal) Series	D-Sub Connectors \| .109"(2.77mm) Contact Spacing x .112" (2.84mm) Row Spacing \| Vertical \| Receptacle \| Metal Body
628 (Plastic) Series	D-Sub Connectors \| .109"(2.77mm) Contact Spacing x .112" (2.84mm) Row Spacing \| Vertical \| Receptacle \| Plastic Body
629 Series	D-Sub Connectors \| Two Contact Rows with .406"(10.30mm) Footprint Right Angle Bend \| Plug
630 Series	D-Sub Connectors \| Two Contact Rows with .406"(10.30mm) Footprint Right Angle Bend \| Receptacle
632 Series	D-Sub Connectors \| High Density Three Contact Rows with .121"(3.08mm) Footprint Right Angle Bend \| Receptacle
633 Series	D-Sub Connectors \| High Density Three Contact Rows with .350"(8.89mm) Footprint Right Angle Bend \| Plug
634 Series	D-Sub Connectors \| High Density Three Contact Rows with .350"(8.89mm) Footprint Right Angle Bend \| Receptacle
637 Series	D-Sub Connectors \| Vertical High Density \| PCB Mount \| Metal Body \| Plug
638 Series	D-Sub Connectors \| Vertical High Density \| PCB Mount \| Metal Body \| Receptacle
661 Series	D-Sub Connectors \| .109"(2.77mm) Contact Spacing x .112"(2.84mm) Row Spacing \| Plug over Plug \| Dual Port \| Right Angle
662 Series	D-Sub Connectors \| .109"(2.77mm) Contact Spacing x .112"(2.84mm) Row Spacing \| Receptacle over Receptacle \| Dual Port \| Right Angle
663 Series	D-Sub Connectors \| .109"(2.77mm) Contact Spacing x .112"(2.84mm) Row Spacing \| Plug over Receptacle \| Dual Port \| Right Angle
664 Series	D-Sub Connectors \| .109"(2.77mm) Contact Spacing x .112"(2.84mm) Row Spacing \| Receptacle over Plug \| Dual Port \| Right Angle
Contacts Series	D-Sub Connector Contacts
Hoods and Caps Series	D-Sub Connector Hoods and Caps

Machined D-Sub Connectors

Series	Description
621M Series	D-Sub Connectors \| Machined Pins \| 0.283" (7.20mm) Footprint Right Angle Bend \| Plug
622M Series	D-Sub Connectors \| Machined Pins \| 0.283" (7.20mm) Footprint Right Angle Bend \| Receptacle
627M Series	D-Sub Connectors \| Machined Pins \| 0.109" (2.77mm) Contact Spacing x 0.112" (2.84mm) Row Spacing \| Vertical \| Plug
628M Series	D-Sub Connectors \| Machined Pins \| .109"(2.77mm) Contact Spacing x .112"(2.84mm) Row Spacing \| Vertical \| Receptacle
629M Series	D-Sub Connectors \| Machined Pins \| Two Contact Rows with .370"(9.40mm) Footprint Right Angle Bend \| Plug
630M Series	D-Sub Connectors \| Machined Pins \| 0.370" (9.40mm) Footprint Right Angle Bend \| Receptacle
633M Series	D-Sub Connectors \| Machined Pins \| High Density Three Contact Rows with 0.350" (8.89mm) Footprint Right Angle Bend \| Plug
634M Series	D-Sub Connectors \| Machined Pins \| High Density Three Contact Rows with 0.350" (8.89mm) Footprint Right Angle Bend \| Receptacle
637M Series	D-Sub Connectors \| Machined Pins \| High Density \| 0.090" (2.29mm) Contact Spacing X 0.078"(1.98mm) Row Spacing \| Vertical \| Plug
638M Series	D-Sub Connectors \| Machined Pins \| High Density \| 0.090" (2.29mm) Contact Spacing X 0.078"(1.98mm) Row Spacing \| Vertical \| Receptacle

Power Combo D-Sub Connectors

Series	Description
627C Series	Vertical Combo D-Sub Connectors \| Plug
627WC Series	Vertical Combo D-Sub Connectors \| Waterproof \| Plug
628C Series	Vertical Combo D-Sub Connectors \| Receptacle
628WC Series	Vertical Combo D-Sub Connector \| Waterproof \| Receptacle
629C Series	Right Angle Combo D-Sub Connector \| Plug
629WC Series	Right Angle Combo D-Sub Connectors \| Waterproof \| Plug
630C Series	Right Angle Combo D-Sub Connectors \| Receptacle
630WC Series	Right Angle Combo D-Sub Connectors \| Waterproof \| Receptacle

Parallel Port D-Sub Connectors

Series	Description
B57 Series	D-Sub Connectors \| Parallel Port \| Can be used with 0.062" (1.57mm), 0.093" (2.36mm) or 0.125" (3.125mm) board thickness

Waterproof D-Sub Connectors

Series	Description
627W Series	D-Sub Connectors \| Waterproof \| 0.109" (2.77mm) Contact Spacing x 0.112" (2.82mm) Row Spacing \| Vertical \| Plug
628W Series	D-Sub Connectors \| Waterproof \| .109"(2.77mm) Contact Spacing x .112"(2.82mm) Row Spacing \| Vertical \| Receptacle
629W Series	D-Sub Connectors \| Waterproof \| .109"(2.77mm) Contact Spacing x .112"(2.82mm) Row Spacing \| Right Angle \| Plug
630W Series	D-Sub Connectors \| Waterproof \| .109"(2.77mm) Contact Spacing x .112"(2.82mm) Row Spacing \| Right Angle \| Receptacle
633W Series	D-Sub Connectors \| Waterproof \| High Density \| 0.090" (2.29mm) Contact Spacing x 0.078" (1.98mm) Row Spacing \| Right Angle \| Plug
634W Series	D-Sub Connectors \| Waterproof \| High Density \| 0.090" (2.29mm) Contact Spacing x 0.078" (1.98mm) Row Spacing \| Right Angle \| Receptacle
637W Series	D-Sub Connectors \| Waterproof \| High Density \| .090" (2.29mm) Contact Spacing x .078" (1.98mm) Row Spacing \| Vertical \| Plug
638W Series	D-Sub Connectors \| Waterproof \| High Density \| .090" (2.29mm) Contact Spacing x .078" (1.98mm) Row Spacing \| Vertical \| Receptacle

D-SUB CONNECTORS | EDAC

D-Subminiature connectors, also known as a d-sub, have been given this name because it is d-shaped; providing automatic polarization. D sub connectors are not exclusively used for display, but are also used for serial-port, parallel-port, SCSI, etc.

When used as a monitor interface, a d-sub port is also referred to as a VGA port, an analog connection standard that has been around for some time. VGA connector is currently the most widely used monitor interface, compatible with very large numbers of PC’s (computer) and LCD monitors.

WHAT IS A D-SUB CONNECTOR?

D-SUB CONNECTOR SIZES AND VARIATIONS

EDAC has a wide range of dsub connectors in multiple sizes. The sizes include 9 (DB9 or DE9), DB15, DB25, 26, 37, 44, 50, 62, and 78 positions within our standard, machined, combo, and waterproof offerings.

EDAC’s stamped contacts provide 3 amps while our machined pins provide up to 5 amps. Our power combo versions with power pins provide up to 40 amps in combination with the data pins.

Waterproof d-sub connectors are also available with epoxy sealed contacts at the rear, and an o-ring seal to the panel. EDAC’s molding process to seal the db connector fills every void with epoxy to provide no air bubbles and no wicking of epoxy up the contacts.

D-SUB CONNECTOR APPLICATIONS

The primary markets are energy, transportation, medical, industrial, and consumer. Applications include energy equipment, computers, medical devices, in-flight infotainment systems, gaming consoles, automotive test equipment, power generation equipment, and many more.

We continually update and advance our products to ensure that our customers have access to the latest and best products available.Contact us for additional information.
