EDAC PCIE 3.0 and SAS Card Edge Connectors are a high speed board to board interconnect solution. Differential pair signaling provides for low insertion loss in a dense package that conserves valuable board space. Widely used in server backplanes these fine pitch connectors come in a variety of orientations and terminations to meet all design parameters.

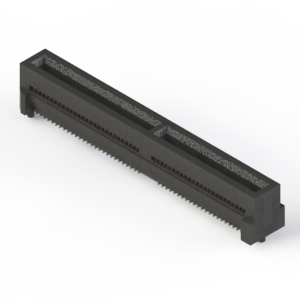

High Speed Card Edge Connectors Series
Series |
Description |
|---|---|
271 Series
|
High Speed Card Edge Connectors | SAS Connector 1.27mm Signal Pitch 0.80mm SCSI Pitch | 68 Pin | Plug |
272 Series
|
High Speed Card Edge Connectors | SAS Connector 1.27mm Signal Pitch 0.80mm SCSI Pitch | Pressfit | Receptacle |
273 Series
|
High Speed Card Edge Connectors | SAS Connector 1.27mm Signal Pitch 0.80mm SCSI Pitch | Receptacle |
370 Series
|
High Speed Card Edge Connectors | Card Edge Connector SMT 0.8mm Pitch | Receptacle without Latch |
470 Series
|
High Speed Card Edge Connectors | Board to Board Male Vertical SMT Connector 1.27mm Pitch |
472 Series
|
High Speed Card Edge Connectors | Board to Board 0.8 mm Pitch | Vertical SMT | Plug |
473 Series
|
High Speed Card Edge Connectors | Board to Board 0.8 mm Pitch | Right-angle SMT | Receptacle |
high-speed edge connector
High-speed edge connectors can transfer data at speeds up to 21 Gbps. This fine pitch board-to-board connector saves valuable PCB space in dense areas.
Engineering options

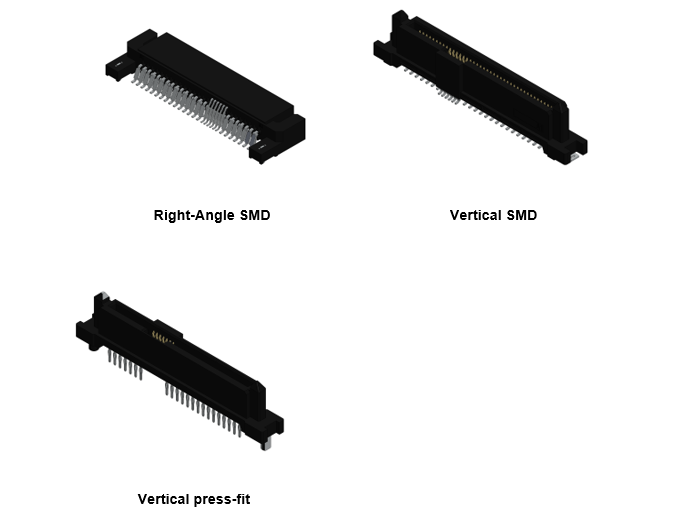

High-speed edge connectors are compliant with interface standards, PCIe (peripheral component interconnect express) and SAS (serial attached SCSI), and are available in vertical or right-angle orientations with SMD or press-fit terminations.
We continually update and advance our products to ensure that our customers have access to the latest and best products available. Contact us for additional information.
