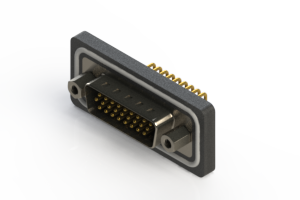

The EDAC D-Seal series of IP67 rated waterproof D-Subminiature connectors are available in both standard and high density packages. Plug & receptacles in 9, 15, 25, 26 and 44 pin versions are available as well as high power combo configurations. Vertical and right angle footprints, with a variety of termination styles, contact plating thicknesses, and mounting options are available. A solid performer in ruggedized applications and harsh environments.
Waterproof D-Sub Connectors Series
Series |
Description |
|---|---|
627W Series
|
D-Sub Connectors | Waterproof IP67 | 0.109" (2.77mm) Contact Spacing x 0.112" (2.82mm) Row Spacing | Vertical | Plug |
628W Series
|
D-Sub Connectors | Waterproof IP67 | .109"(2.77mm) Contact Spacing x .112"(2.82mm) Row Spacing | Vertical | Receptacle |
629W Series
|
D-Sub Connectors | Waterproof IP67 | .109"(2.77mm) Contact Spacing x .112"(2.82mm) Row Spacing | Right Angle | Plug |
630W Series
|
D-Sub Connectors | Waterproof IP67 | .109"(2.77mm) Contact Spacing x .112"(2.82mm) Row Spacing | Right Angle | Receptacle |
633W Series
|
D-Sub Connectors | Waterproof IP67 | High Density | 0.090" (2.29mm) Contact Spacing x 0.078" (1.98mm) Row Spacing | Right Angle | Plug |
634W Series
|
D-Sub Connectors | Waterproof IP67 | High Density | 0.090" (2.29mm) Contact Spacing x 0.078" (1.98mm) Row Spacing | Right Angle | Receptacle |
637W Series
|
D-Sub Connectors | Waterproof IP67 | High Density | .090" (2.29mm) Contact Spacing x .078" (1.98mm) Row Spacing | Vertical | Plug |
638W Series
|
D-Sub Connectors | Waterproof IP67 | High Density | .090" (2.29mm) Contact Spacing x .078" (1.98mm) Row Spacing | Vertical | Receptacle |
