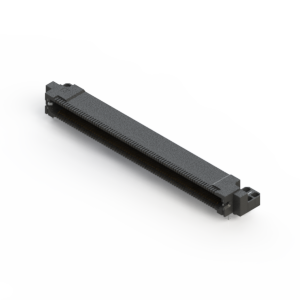

473 Series

Features

• Low Profile for Space Saving
• Insertion Loss: Differential Pair Signaling 19 Gbps @ -3 dB
• Available in 100 and 150 contacts
• Available in Vertical SMT and Right Angle SMT
• PCIe 3.0 Compliant
• Application: Server, Data Storage

Specifications

• Housing Material: High Temperature Thermoplastic UL-94V-0
• Contact Material: Copper Alloy
• Soldering: Copper Alloy
• Contact Plating: Gold Flash Plating
• Voltage Rating: 200 V AC
• Current Rating: 1.4 A
• Contact Resistance: 25 m? Maximum
• Dielectric Withstand Voltage: 200 V AC for 60 seconds
• Insulation Resistance: 10000 M? Minimum
• -55°C to +125°C
• Mating Force: 0.52 N/Pin Maximum
• Unmating Force: 0.09 N/Pin Minimum
