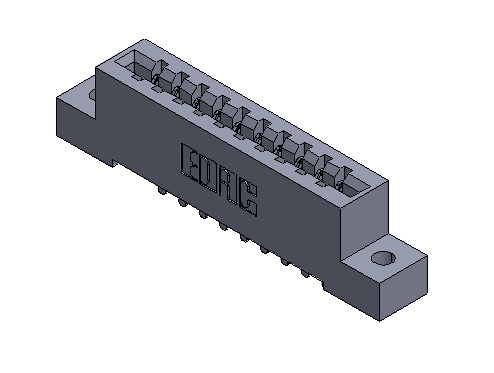

EDAC High Temp card edge connectors utilize high temp insulators ideal for the RoHS infrared soldering process. All of the features of our standard cardedge are available in these ruggedized versions. A solid performer over a wide temperature range from -40° C to +125° C.
High Temp Card Edge Connectors Series
Series |
Description |
|---|---|
802 Series
|
High Temp Card Edge Connector | Black | 0.05" (1.27mm) Pitch |
807 Series
|
High Temp Card Edge Connector | Green | 0.156" (3.96mm) Pitch | 0.200" (5.08mm) Row Spacing | Low Profile Insulator |
833 Series
|
High Temp Card Edge Connector | Green | 0.156" (3.96mm) Pitch | 0.200" (5.08mm) Row Spacing | High Profile Insulator | Deep Card Slot |
837 Series
|
High Temp Card Edge Connector | Green | 0.156" (3.96mm) Pitch | 0.200" (5.08mm) Row Spacing | High Profile Insulator |
842 Series
|
High Temp Card Edge Connector | Green | 0.100" (2.54mm) Pitch | 0.200" (5.08mm) Row Spacing | Deep Card Slot |
845 Series
|
High Temp Card Edge Connector | Green | 0.100" (2.54mm) Pitch | 0.200" (5.08mm) Row Spacing |
846 Series
|
High Temp Card Edge Connector | Green | 0.125" (3.175mm) Pitch | 0.250" (6.35mm) Row Spacing |
857 Series
|
High Temp Card Edge Connector | Black | 0.156" (3.96mm) Pitch | 0.200" (5.08mm) Row Spacing | Low Profile Insulator |
887 Series
|
High Temp Card Edge Connector | Black | 0.156" (3.96mm) Pitch | 0.200" (5.08mm) Row Spacing | High Profile Insulator |
892 Series
|
High Temp Card Edge Connector | Black | 0.100" (2.54mm) Pitch | 0.200" (5.08mm) Row Spacing | Deep Card Slot |
895 Series
|
High Temp Card Edge Connector | Black | 0.100" (2.54mm) Pitch | 0.200" (5.08mm) Row Spacing |
896 Series
|
High Temp Card Edge Connector | Black | 0.125" (3.175mm) Pitch | 0.250" (6.35mm) Row Spacing |
What is a high temperature card edge connector?
High temperature card edge connectors have all the same features of the standard card edge connectors, the difference being the use of a high temp insulator material. The high temp material is used to support the RoHS infrared reflow soldering temperature requirements of 230°C for 60 seconds or 260°C for 10 seconds. The standard operating temperature range for these connectors is from -40°C to +125°C but with the use of special copper contact material, the high temperature edge connector range can be increased to meet up to 150°C.
Engineering options
High temperature card edge connectors are available in two insulator materials, Diallyl Phthalate (green) or Polyphenylene Sulfide (Black).
We continually update and advance our products to ensure that our customers have access to the latest and best products available. Contact us for additional information.
