USB Connectors

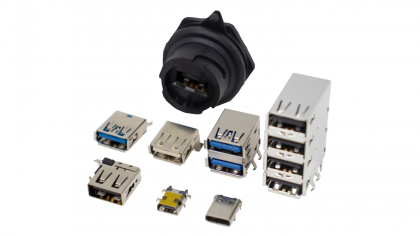

EDAC Standard USB+ family of connectors are available in all types A, B and C in vertical or right angle orientations. USB's combine data and power in a small package. Type C offers ten times the speed of conventional USB's and will mate in either direction.
USB Connectors

Highlights

  • Up to 1.5 Mbps communication speed for standard USB 1.0
  • Up to 480 Mbps communication speed for standard USB 2.0
  • Up to 5 Gbps communication speed for standard USB 3.0
  • Industry Standard Plug and play technology
  • Hot Pluggable
  • Compatible with asynchronous and isochronous data transfer methods
  • Consolidated current serial, parallel, keyboard mouse and game ports as well as, ISDN and PBX

USB Connector Brochure:

Interconnect Solutions Brochure:



USB Connectors

USB Connectors

Series

Description

690A Series

690A
USB 2.0 TYPE-A RECEPTACLES - RIGHT ANGLE PCB

690B Series

690B
USB 3.0 TYPE-A RECEPTACLES - RIGHT ANGLE PCB

690C Series

690C
USB 2.0 TYPE-A RECEPTACLES - UPRIGHT RIGHT ANGLE PCB

690D Series

690D
USB 3.0 TYPE-A RECEPTACLES - UPRIGHT RIGHT ANGLE PCB

690E Series

690E
USB 2.0 TYPE-A RECEPTACLES - VERTICAL PCB

690F Series

690F
USB 3.0 TYPE-A RECEPTACLES - VERTICAL PCB

690G Series

690G
USB 2.0 TYPE-A RECEPTACLES - MID-MOUNT PCB

690H Series

690H
USB 3.0 TYPE-A RECEPTACLES - MID-MOUNT PCB

690J Series

690J
USB 2.0 TYPE-A RECEPTACLES - RIGHT ANGLE SMT

690L Series

690L
USB 2.0 TYPE-A RECEPTACLES - CABLE END SOLDER CUP

690M Series

690M
USB 3.0 TYPE-A RECEPTACLES - CABLE END SOLDER PAD

690N Series

690N
USB TYPE-A RECEPTACLES - DUAL STACK

690P Series

690P
USB TYPE-B RECEPTACLES - RIGHT ANGLE PCB

690Q Series

690Q
USB 2.0 TYPE-B RECEPTACLES - VERTICAL PCB

690S Series

690S
USB 2.0 TYPE-B RECEPTACLES - CABLE END SOLDER CUP

690T Series

690T
USB MINI & MICRO TYPE-B RECEPTACLES - RIGHT ANGLE SMT

691C Series

691C
USB 2.0 TYPE-A PLUGS - CABLE END SOLDER CUP

691E Series

691E
USB 2.0 TYPE-A PLUGS - CABLE END SOLDER PAD

691F Series

691F
USB TYPE-B PLUGS - CABLE END SOLDER CUP

698A Series

698A
USB TYPE-C RECEPTACLES - 6 PIN OPTION

698B Series

698B
USB TYPE-C RECEPTACLES - 16 PIN OPTION

698C Series

698C
USB TYPE-C RECEPTACLES - 24 PIN OPTION

699B Series

699B
USB TYPE-C PLUGS - 16 PIN OPTION

699C Series

699C
USB TYPE-C PLUGS - 24 PIN OPTION

Waterproof USB Connectors

Series

Description

690W Series

690W
Waterproof USB Connectors


USB CONNECTORS | edac

USB, also known as Universal Serial Bus, combines power and data into one reliable connector.

The USB connector has become the standard in many applications such as smartphones, printers, cameras, set top boxes, portable radios, flash drives, medical equipment, automotive ports, in-flight infotainment systems, and security cameras to name a few.

WHAT IS A USB CONNECTOR?

USB CONNECTOR TYPES AND VARIATIONS

USB’s are available as Type A, Type B, Mini B, Micro B, and USB-C (formally known as USB Type-C). The standard USB has 4 contacts while some come with 5 contacts. USB-C has 24 contacts.

Right angle (side entry) and vertical (top entry) USBs are available with through hole or surface mount terminations.

Standard USB 1.0 = Up to 1.5 Mbps communication speed

Standard USB 2.0 = Up to 480 Mbps communication speed

Standard USB 3.0 = Up to 5 Gbps communication speed

USB 2.0 is rated at 700 milli-amps and is good for 1 gigabyte per second speed. USB 3.0 is rated up to 2 amps and runs at 5 gigabytes. The latest, USB Type C 3.1 is rated up to 5 amps with a speed that is 10 times the conventional speed at 10 gigabytes per second.

USB CONNECTOR INDUSTRIES

Primary industries for USB connectors are consumer, data, medical, automotive, and Mil-Aero.

We continually update and advance our products to ensure that our customers have access to the latest and best products available. Contact us for more information.
