Metal to Metal Card Edge Connectors

Metal to Metal Card Edge Connectors

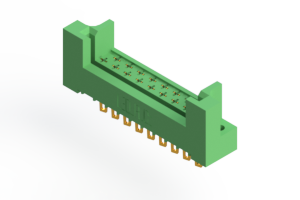

The EDAC E-Met family is a two piece, metal to metal, high reliability connector solution. Utilizing our Edacon hermaphroditic contacts, the fork-like design incorporates four mating surfaces providing a gas tight connection with high shock and vibration resistance. For board to board, or wire to board applications, they can be used with 0.062” or 0.093” printed circuit boards.





Metal to Metal Card Edge Connectors Brochure:

Interconnect Solutions Brochure:



Metal to Metal Card Edge Connectors Series

Series

Description

408 Series

408
High Reliability Inter-Lock | Green | Metal to Metal | Receptacle | Closed Card Slot

415 Series

415
High Reliability Inter-Lock | Green | Metal to Metal | Receptacle | High Profile Insulator | Closed Card Slot

421 Series

421
High Reliability Inter-Lock | Green | Metal to Metal | Plug | Mounting Ears

422 Series

422
High Reliability Inter-Lock | Green | Metal to Metal | Plug | No Mounting Ears

423 Series

423
High Reliability Inter-Lock | Green | Metal to Metal | Plug | Mounting Ears with Guide Pins

424 Series

424
High Reliability Inter-Lock | Green | Metal to Metal | Receptacle | Open Card Slot

438 Series

438
High Reliability Inter-Lock | Green | Metal to Metal | Receptacle | High Profile Insulator | Open Card Slot




What is a Metal-to-metal edge connector?

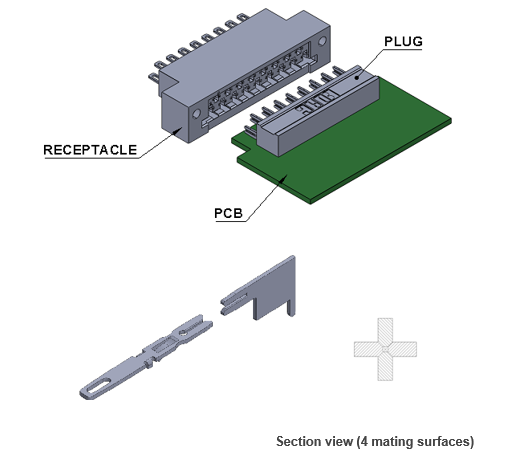

Metal-to-metal card edge connectors are a high reliability interconnect solution for applications where high shock and vibration resistance is required. Plug and receptacle connectors mate together to provide a board-to-board or wire-to-board connection. The hermaphroditic contact mating design incorporates four mating surfaces and ensures a gas tight connection.

Engineering options

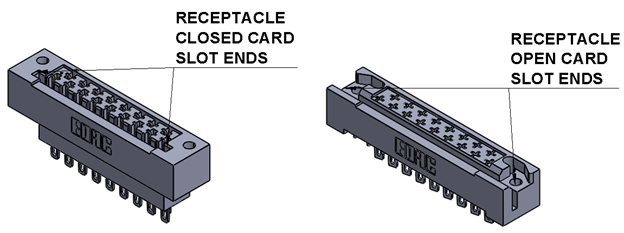

The plug and receptacle are designed to accept PC card thicknesses of 1.57mm or 2.36mm. The receptacle is available with an open or closed card slot and card guides are an option to help facilitate the mating plug connector and PCB. Receptacles are available with various termination options (PC tail, wire hole, crimp, wire wrap) for board- to-board or wire-to-board connection.

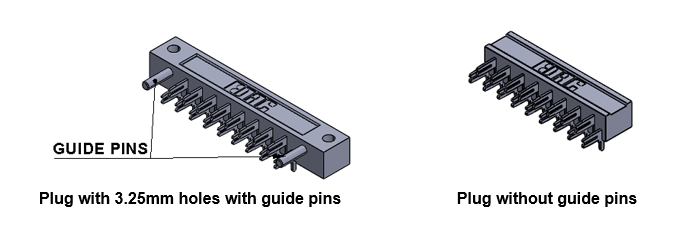

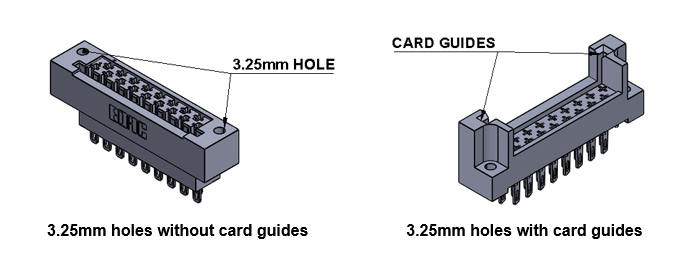

Mounting Options:

We continually update and advance our products to ensure that our customers have access to the latest and best products available. Contact us for additional information.
