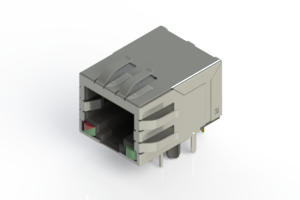

The EDAC E-JAX family of Modular Jacks are manufactured to industry standards and are also fully customizable. Single, ganged, or stacked versions are available up to 2 x 8 ports. Shielded or unshielded, with a variety of LED options. SMT and through hole terminations are available in right angle or vertical orientations. Multiple plating options are also available.
Modular Jack Connectors Series
Series |
Description |
|---|---|
J20 Series
|
SINGLE PORT RJ45, VERTICAL PCB MOUNT, NON-SHIELDED, 6.35mm FOOTPRINT (16.4mm BODY) |
J21 Series
|
SINGLE PORT RJ11, VERTICAL PCB MOUNT, NON-SHIELDED, 6.35mm FOOTPRINT |
J24 Series
|
SINGLE PORT RJ11 WITH OPTIONAL MBB, VERTICAL PCB MOUNT, NON-SHIELDED, 6.35mm FOOTPRINT |
J28 Series
|
SINGLE PORT RJ45, VERTICAL PCB MOUNT, NON-SHIELDED, 6.35mm FOOTPRINT (13mm BODY) |
J2K Series
|
SINGLE PORT RJ45, VERTICAL PCB MOUNT, NON-SHIELDED, 6.4mm FOOTPRINT |
J2L Series
|
SINGLE PORT RJ45, VERTICAL PCB MOUNT, SHIELDED, 6.35mm FOOTPRINT |
J2T Series
|
SINGLE PORT RJ45, 45 degree PCB MOUNT, SHIELDED, 6.35mm FOOTPRINT |
J2W Series
|
4 PORT RJ45 WITH LEDS, VERTICAL PCB MOUNT, NON-SHIELDED, 3.2mm FOOTPRINT |
J2X Series
|
SINGLE PORT RJ11, VERTICAL PCB MOUNT, NON-SHIELDED, LINKABLE HOUSING |
J53 Series
|
2 PORT RJ11, TAB UP RIGHT ANGLE PCB MOUNT, NON-SHIELDED WITH PANEL STOPS, 2.3mm FOOTPRINT |
J60 Series
|
4 PORT RJ45, TAB DOWN RIGHT ANGLE PCB MOUNT, SHIELDED, 6.35mm FOOTPRINT |
J67 Series
|
4 PORT RJ45 WITH LEDS, TAB UP RIGHT ANGLE PCB MOUNT, NON SHIELDED, 2.54mm FOOTPRINT |
J6A Series
|
2 PORT RJ45, RIGHT ANGLE PCB MOUNT, SHIELDED, 2.54mm FOOTPRINT |
J6D Series
|
SINGLE PORT RJ45 WITH OPTIONAL LEDS, TAB UP RIGHT ANGLE SMT MOUNT, SHIELDED WITH OPTIONAL EMI |
J6E Series
|
SINGLE PORT RJ45 WITH OPTIONAL LEDS, TAB UP RIGHT ANGLE SMT MOUNT, SHIELDED |
J6F Series
|
SINGLE PORT RJ45, TAB UP RIGHT ANGLE PCB MOUNT, SHIELDED, 2.54mm FOOTPRINT |
J79 Series
|
SINGLE PORT RJ45, TAB DOWN RIGHT ANGLE PCB MOUNT, NON-SHIELDED, 6.35mm FOOTPRINT |
J93 Series
|
4 PORT RJ45, TAB DOWN RIGHT ANGLE PCB MOUNT, SHIELDED, 6.30mm FOOTPRINT |
J96 Series
|
MULTI-PORT STACKED RJ45 WITH OPTIONAL LEDS, RIGHT ANGLE PCB MOUNT, SHIELDED WITH OPTIONAL EMI |
J9F Series
|
4 PORT (2x2 STACKED) RJ45, RIGHT ANGLE PCB MOUNT, NON-SHIELDED |
J9P Series
|
SINGLE PORT RJ45 WITH OPTIONAL LEDS, TAB DOWN RIGHT ANGLE PCB MOUNT, SHIELDED WITH EMI |
J9Q Series
|
SINGLE PORT RJ45, TAB DOWN RIGHT ANGLE PCB MOUNT, SHIELDED WITH 'REVERSED' EMI, 6.35mm FOOTPRINT |
JF2 Series
|
2 PORT RJ45, VERTICAL PCB MOUNT, NON-SHIELDED WITH PANEL STOPS |
JG2 Series
|
3 PORT RJ45, TAB UP RIGHT ANGLE PCB MOUNT, NON-SHIELDED WITH PANEL STOPS |
JPG Series
|
SINGLE PORT RJ45, 'REVERSED' VERTICAL PCB MOUNT, NON-SHIELDED |
JS8 Series
|
SINGLE PORT RJ45, TAB DOWN RIGHT ANGLE SMT MOUNT, SHIELDED WITH EMI |
