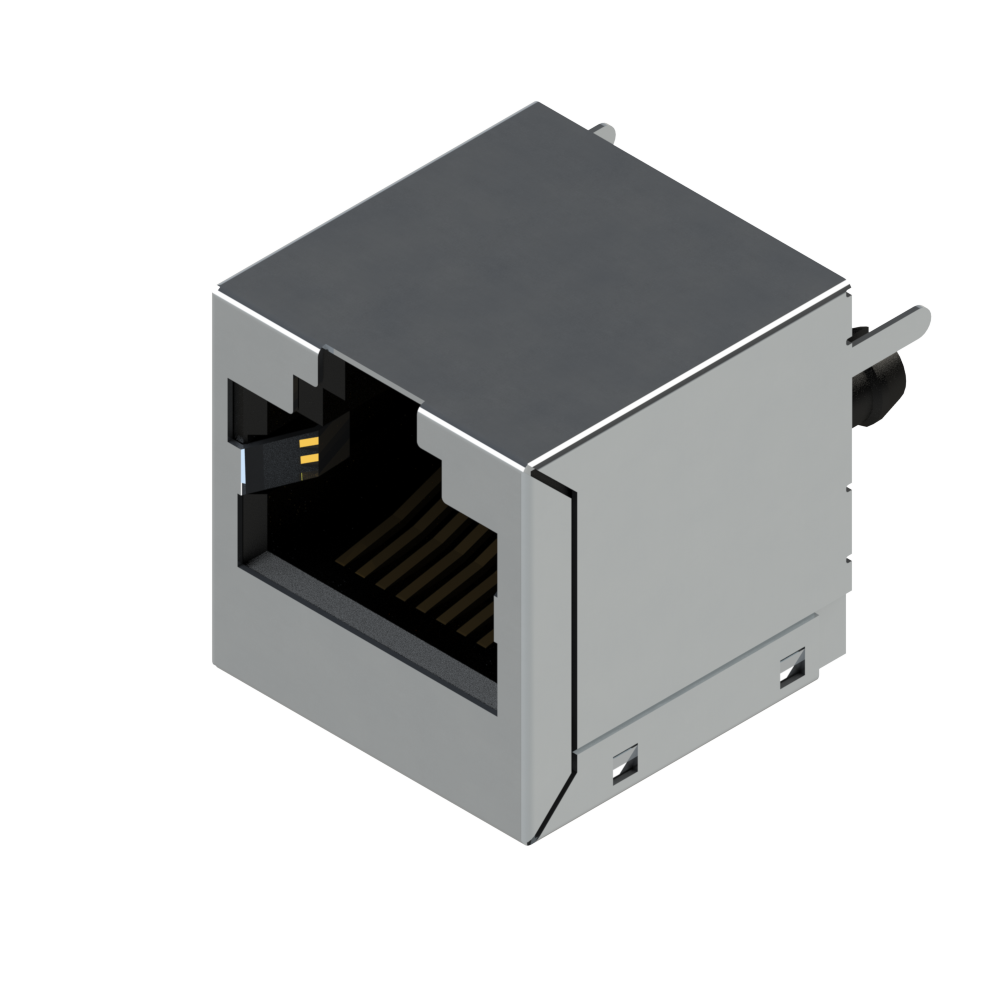

A00 Series

Features

  • Top performance for high speed networking, voice and data applications
  • Meet FCC PART 68, Subpart F requirements
  • Industry standard footprint and height with low profile options available
  • Available with or without shielding
  • Ganged and/or stacked for multiple port requirements
  • Advanced EMI / RFI protection with Grounding options (PCB or Panel)
  • Both plugs and jacks can be fully or partially loaded
  • Available in Tab-up (inverted latch) or Tab-down (standard l) for single port
  • Applications: Telecommunications, Broadcast, Data Products
  • RoHS Compliant
  • Note: Registered Jack (RJ11) has only 6 contacts


Specifications

  • Housing Material: PBT Polyester, UL 94V-0
  • Contact Material: Phosphor Bronze
  • Contact Plating: Gold Plating on contact area and Tin Plating on tails with Nickel underplating all over
  • Current Rating: 1.5A @25°C
  • Voltage Rating: 125V AC
  • Contact Resistance: 20 mΩ maximum
  • Dielectric Withstanding Voltage: 1000VAC
  • Insulation Resistance: 500 MΩ minimum
  • Durability: 750 cycles minimum
  • Operating Temperature: -40°C to +85°C
  • Wave Soldering Process: 260°C ± 5°C, 5~10 Seconds
