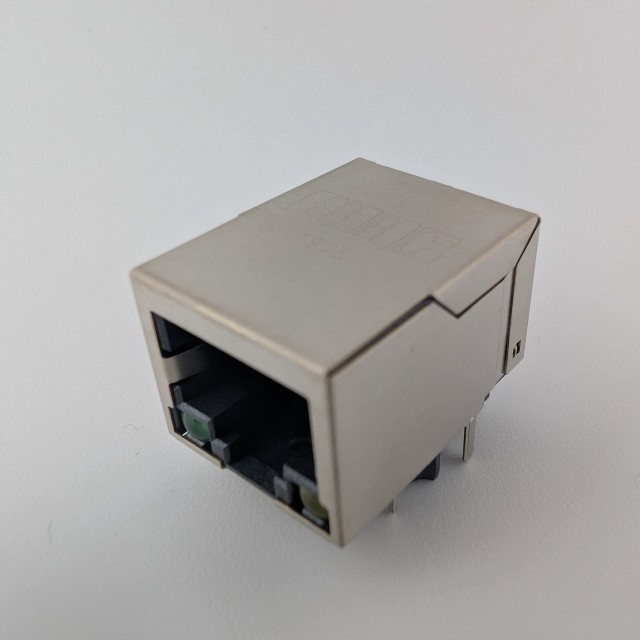

A6X Series



  • 10/100 or 1000 Base T options – Full IEEE 802.3 compliance
  • Integrated Magnetics – Provides signal integrity, DC isolation and protection for PHY chip
  • Integrated Design - Reduces component inventory and process costs
  • Spring fingers on shells - Guaranteed advanced EMI/RFI suppression
  • LED options available - Visual indication of port status and activity information for user
  • Tab Up or Down options - Complete design for board and unit compatibility
  • Available as Single or Stacked Multiport Options
  • Mate with Modular Plug Conforming to FCC Part 68, Subpart F
  • Applications: Telecommunications, Broadcast, Data Products
  • RoHS Compliant


  • Housing Material: Thermoplastic, UL 94V-0
  • Contact Material: Copper Alloy
  • Contact Plating: Gold Plating on contact area and Tin Plating on tails with Nickel underplating all over
  • Shield: Copper Alloy with Nickel Plating
  • Storage Temperature: -40°C to +85°C
  • Operating Temperature: 0°C to +70°C
  • Wave Soldering Process: 260°C ± 5°C, 5~10 Seconds

CAT5 10/100 BASE-T
CAT5e 10/100/1000 BASE-T or Gigabit Ethernet
CAT6a 10 Gigabit Ethernet
