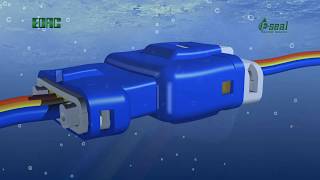

566 Series

Features

  • 2.0mm Pitch, Rated Current: 2A max
  • Fully Waterproof Solution available in 2, 3, 4, or 6 Positions (2 and 3 Positions Only for Wire to Board)
  • Available in Wire-to-Wire and Wire-to-Board Options
  • Seals preassembled into housing; no external sealing required
  • True Crimp and Poke Solution
  • Waterproofing cap available to Cover unused Positions
  • Available with wire already installed
  • Waterproof Grade IP67 Certified


Specifications

  • No. of Positions : 2, 3, 4, or 6
  • Pitch : 2.0mm
  • Rated Voltage : 250V
  • Rated Current : 2A max
  • Withstanding Voltage : 1000V AC (rms)
  • Contact Resistance : 10 m? max
  • Insulation Resistance : 1000 M? min./DC500V
  • Temperature Range : -40°C to +105°C
  • PCB Thickness : 1.6mm



Notes

Ordering Guide:


566


E-Seal | In-Line Waterproof Connectors


OR

Loading Parts


Part #

Position

Gender

Style

Color

Datasheet

3D Model

566-002-000-710 - Waterproof Inline Connector
566-002-000-710 - Waterproof Inline Connector
566-002-000-710 2 Male Wire to Wire Black
566-002-000-711 - Waterproof Inline Connector
566-002-000-711 - Waterproof Inline Connector
566-002-000-711 2 Male Wire to Wire Black
566-002-000-810 - Waterproof Inline Connector
566-002-000-810 - Waterproof Inline Connector
566-002-000-810 2 Female Wire to Wire Black
566-002-000-811 - Waterproof Inline Connector
566-002-000-811 - Waterproof Inline Connector
566-002-000-811 2 Female Wire to Wire Black
566-002-421-701 - Waterproof Inline Connector
566-002-421-701 - Waterproof Inline Connector
566-002-421-701 2 Male Wire to Board Black
566-003-000-710 - Waterproof Inline Connector
566-003-000-710 - Waterproof Inline Connector
566-003-000-710 3 Male Wire to Wire Black
566-003-000-711 - Waterproof Inline Connector
566-003-000-711 - Waterproof Inline Connector
566-003-000-711 3 Male Wire to Wire Black
566-003-000-810 - Waterproof Inline Connector
566-003-000-810 - Waterproof Inline Connector
566-003-000-810 3 Female Wire to Wire Black
566-003-000-811 - Waterproof Inline Connector
566-003-000-811 - Waterproof Inline Connector
566-003-000-811 3 Female Wire to Wire Black
566-003-421-701 - Waterproof Inline Connector
566-003-421-701 - Waterproof Inline Connector
566-003-421-701 3 Male Wire to Board Black
566-004-000-710 - Waterproof Inline Connector
566-004-000-710 - Waterproof Inline Connector
566-004-000-710 4 Male Wire to Wire Black
566-004-000-711 - Waterproof Inline Connector
566-004-000-711 - Waterproof Inline Connector
566-004-000-711 4 Male Wire to Wire Black
566-004-000-810 - Waterproof Inline Connector
566-004-000-810 - Waterproof Inline Connector
566-004-000-810 4 Female Wire to Wire Black
566-004-000-811 - Waterproof Inline Connector
566-004-000-811 - Waterproof Inline Connector
566-004-000-811 4 Female Wire to Wire Black
566-006-000-710 - Waterproof Inline Connector
566-006-000-710 - Waterproof Inline Connector
566-006-000-710 6 Male Wire to Wire Black
566-006-000-711 - Waterproof Inline Connector
566-006-000-711 - Waterproof Inline Connector
566-006-000-711 6 Male Wire to Wire Black
566-006-000-810 - Waterproof Inline Connector
566-006-000-810 - Waterproof Inline Connector
566-006-000-810 6 Female Wire to Wire Black
566-006-000-811 - Waterproof Inline Connector
566-006-000-811 - Waterproof Inline Connector
566-006-000-811 6 Female Wire to Wire Black
