151 Series

Features

  • Header posts can be cut to any height and board depth
  • Wide Variety of plating options.
  • Vertical Right Angle or Custom bends.
  • Breakaway design allows for easy separation into smaller units.
  • Coloured insulators are available
  • Wide range of custom capabilities and options.
  • High Temperature Materials are available.
  • 200 Mating Cycles Minimum
  • RoHS Compliant


Specifications

  • Insulator Material: UL 94V-0 Thermoplastic Polyester
  • Contact Material: Copper Alloy
  • Contact Plating: Selective Gold Plating over Nickel with Tin Plated Tails
  • Current Rating: Various, Depending On Connector
  • Contact Resistance: 10 milliohms maximum
  • Dielectric Withstand Voltage: Various, Depending On Connector
  • Insulation Resistance: 1000 Megaohms minimum
  • Operating Temperature: Operating Temperature: -40°C to +105°C



Notes

Ordering Guide:




EDAC Connectors | Header
EDAC Connectors | Header

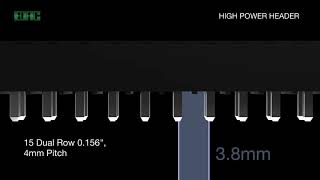

EDAC High Power Header
