746 Series

Features

  • .125" (3.175mm) Contact spacing x .250" (6.35mm) row spacing
  • Accepts .062" (1.57mm) nominal thickness P.C. board
  • High profile insulator body, .645(16.38) with notched ends Option
  • Contact termination options include P.C. tail, and .025" (0.64mm) square wire wrap

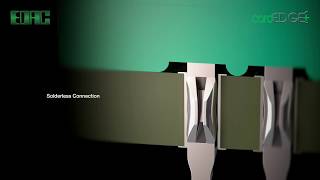

  • Press-Fit compliant section for gas tight reliable connection in plated through holes eliminates soldering operations
  • Single or dual row configurations
  • Accepts between contact and In-Contact polarizing keys (Special features if requested)
  • Tools available for insulator and contact removal. Simple "Flat Rock" tooling is used for connector installation.
  • RoHS Compliant & UL Certified


Specifications

  • Insulator Material : UL 94V-0 Thermoplastic Polyester, Black
  • Contact Material : Copper Alloy
  • Contact Plating : 30u" Gold Plating on mating area and Tin Plating on tails with Nickel underplating all over
  • Current Rating : 3 Ampere
  • Contact Resistance : 10 milliohms Maximum
  • Dielectric Withstand Voltage : 1500 VAC rms at sea level between adjacent contacts
  • Insulation Resistance : 5000 Megaohms Minimum
  • Operating Temperature : -40°C to +105°C
  • Insertion Force : 16oz (4.45N) Maximum per contact pair when tested with .070" (1.78mm) thick gauge
  • Withdrawal Force : 1oz (0.28N) Minimum per contact pair when tested with .054" (1.37mm) thick gauge
  • Contact insertion into Hole : 20 lbs (89 N) Maximum
  • Contact Retention in Hole : 10 lbs (44 N) Minimum
  • Re-Insertability in same Hole : 3 Times Minimum



Notes




Card Edge Connector | Pressfit | 0.125" (3.175mm) Pitch | 0.25" (6.35mm) Row Spacing


OR

Loading Parts


Part #

Position

Material

Color

Rows

Contact Description

Contact Tail Length

Contact Point

Insulator Height

2D PDF

3D STEP

746-011-525-101 - Pressfit Card Edge Connector
746-011-525-101 - Pressfit Card Edge Connector
746-011-525-101 11 UL 94V-0 Thermoplastic Polyester Black Single Row .515" (13.08mm) Slot Depth P.C. Tail .190" (4.83mm) High Point .645" (16.38mm) Full Height Ends
746-011-525-106 - Pressfit Card Edge Connector
746-011-525-106 - Pressfit Card Edge Connector
746-011-525-106 11 UL 94V-0 Thermoplastic Polyester Black Single Row .515" (13.08mm) Slot Depth P.C. Tail .190" (4.83mm) High Point .550" (13.97mm) Notched Ends
746-011-525-501 - Pressfit Card Edge Connector
746-011-525-501 - Pressfit Card Edge Connector
746-011-525-501 11 UL 94V-0 Thermoplastic Polyester Black Single Row .340" (8.64mm) Slot Depth P.C. Tail .190" (4.83mm) High Point .645" (16.38mm) Full Height Ends
746-011-525-506 - Pressfit Card Edge Connector
746-011-525-506 - Pressfit Card Edge Connector
746-011-525-506 11 UL 94V-0 Thermoplastic Polyester Black Single Row .340" (8.64mm) Slot Depth P.C. Tail .190" (4.83mm) High Point .550" (13.97mm) Notched Ends
746-011-527-101 - Pressfit Card Edge Connector
746-011-527-101 - Pressfit Card Edge Connector
746-011-527-101 11 UL 94V-0 Thermoplastic Polyester Black Single Row .515" (13.08mm) Slot Depth P.C. Tail .375" (9.52mm) High Point .645" (16.38mm) Full Height Ends
746-011-527-106 - Pressfit Card Edge Connector
746-011-527-106 - Pressfit Card Edge Connector
746-011-527-106 11 UL 94V-0 Thermoplastic Polyester Black Single Row .515" (13.08mm) Slot Depth P.C. Tail .375" (9.52mm) High Point .550" (13.97mm) Notched Ends
746-011-527-501 - Pressfit Card Edge Connector
746-011-527-501 - Pressfit Card Edge Connector
746-011-527-501 11 UL 94V-0 Thermoplastic Polyester Black Single Row .340" (8.64mm) Slot Depth P.C. Tail .375" (9.52mm) High Point .645" (16.38mm) Full Height Ends
746-011-527-506 - Pressfit Card Edge Connector
746-011-527-506 - Pressfit Card Edge Connector
746-011-527-506 11 UL 94V-0 Thermoplastic Polyester Black Single Row .340" (8.64mm) Slot Depth P.C. Tail .375" (9.52mm) High Point .550" (13.97mm) Notched Ends
746-011-540-101 - Pressfit Card Edge Connector
746-011-540-101 - Pressfit Card Edge Connector
746-011-540-101 11 UL 94V-0 Thermoplastic Polyester Black Single Row .515" (13.08mm) Slot Depth Wire Wrap .560" (14.22mm) Regular Point .645" (16.38mm) Full Height Ends
746-011-540-106 - Pressfit Card Edge Connector
746-011-540-106 - Pressfit Card Edge Connector
746-011-540-106 11 UL 94V-0 Thermoplastic Polyester Black Single Row .515" (13.08mm) Slot Depth Wire Wrap .560" (14.22mm) Regular Point .550" (13.97mm) Notched Ends
746-011-540-501 - Pressfit Card Edge Connector
746-011-540-501 - Pressfit Card Edge Connector
746-011-540-501 11 UL 94V-0 Thermoplastic Polyester Black Single Row .340" (8.64mm) Slot Depth Wire Wrap .560" (14.22mm) Regular Point .645" (16.38mm) Full Height Ends
746-011-540-506 - Pressfit Card Edge Connector
746-011-540-506 - Pressfit Card Edge Connector
746-011-540-506 11 UL 94V-0 Thermoplastic Polyester Black Single Row .340" (8.64mm) Slot Depth Wire Wrap .560" (14.22mm) Regular Point .550" (13.97mm) Notched Ends
746-011-541-101 - Pressfit Card Edge Connector
746-011-541-101 - Pressfit Card Edge Connector
746-011-541-101 11 UL 94V-0 Thermoplastic Polyester Black Single Row .515" (13.08mm) Slot Depth Wire Wrap .750" (19.05mm) Regular Point .645" (16.38mm) Full Height Ends
746-011-541-106 - Pressfit Card Edge Connector
746-011-541-106 - Pressfit Card Edge Connector
746-011-541-106 11 UL 94V-0 Thermoplastic Polyester Black Single Row .515" (13.08mm) Slot Depth Wire Wrap .750" (19.05mm) Regular Point .550" (13.97mm) Notched Ends
746-011-541-501 - Pressfit Card Edge Connector
746-011-541-501 - Pressfit Card Edge Connector
746-011-541-501 11 UL 94V-0 Thermoplastic Polyester Black Single Row .340" (8.64mm) Slot Depth Wire Wrap .750" (19.05mm) Regular Point .645" (16.38mm) Full Height Ends
746-011-541-506 - Pressfit Card Edge Connector
746-011-541-506 - Pressfit Card Edge Connector
746-011-541-506 11 UL 94V-0 Thermoplastic Polyester Black Single Row .340" (8.64mm) Slot Depth Wire Wrap .750" (19.05mm) Regular Point .550" (13.97mm) Notched Ends
746-011-545-101 - Pressfit Card Edge Connector
746-011-545-101 - Pressfit Card Edge Connector
746-011-545-101 11 UL 94V-0 Thermoplastic Polyester Black Single Row .515" (13.08mm) Slot Depth Wire Wrap .560" (14.22mm) High Point .645" (16.38mm) Full Height Ends
746-011-545-106 - Pressfit Card Edge Connector
746-011-545-106 - Pressfit Card Edge Connector
746-011-545-106 11 UL 94V-0 Thermoplastic Polyester Black Single Row .515" (13.08mm) Slot Depth Wire Wrap .560" (14.22mm) High Point .550" (13.97mm) Notched Ends
746-011-545-501 - Pressfit Card Edge Connector
746-011-545-501 - Pressfit Card Edge Connector
746-011-545-501 11 UL 94V-0 Thermoplastic Polyester Black Single Row .340" (8.64mm) Slot Depth Wire Wrap .560" (14.22mm) High Point .645" (16.38mm) Full Height Ends
746-011-545-506 - Pressfit Card Edge Connector
746-011-545-506 - Pressfit Card Edge Connector
746-011-545-506 11 UL 94V-0 Thermoplastic Polyester Black Single Row .340" (8.64mm) Slot Depth Wire Wrap .560" (14.22mm) High Point .550" (13.97mm) Notched Ends
746-011-553-101 - Pressfit Card Edge Connector
746-011-553-101 - Pressfit Card Edge Connector
746-011-553-101 11 UL 94V-0 Thermoplastic Polyester Black Single Row .515" (13.08mm) Slot Depth Wire Wrap .702" (17.83mm) High Point .645" (16.38mm) Full Height Ends
746-011-553-106 - Pressfit Card Edge Connector
746-011-553-106 - Pressfit Card Edge Connector
746-011-553-106 11 UL 94V-0 Thermoplastic Polyester Black Single Row .515" (13.08mm) Slot Depth Wire Wrap .702" (17.83mm) High Point .550" (13.97mm) Notched Ends
746-011-553-501 - Pressfit Card Edge Connector
746-011-553-501 - Pressfit Card Edge Connector
746-011-553-501 11 UL 94V-0 Thermoplastic Polyester Black Single Row .340" (8.64mm) Slot Depth Wire Wrap .702" (17.83mm) High Point .645" (16.38mm) Full Height Ends
746-011-553-506 - Pressfit Card Edge Connector
746-011-553-506 - Pressfit Card Edge Connector
746-011-553-506 11 UL 94V-0 Thermoplastic Polyester Black Single Row .340" (8.64mm) Slot Depth Wire Wrap .702" (17.83mm) High Point .550" (13.97mm) Notched Ends
746-012-520-101 - Pressfit Card Edge Connector
746-012-520-101 - Pressfit Card Edge Connector
746-012-520-101 12 UL 94V-0 Thermoplastic Polyester Black Single Row .515" (13.08mm) Slot Depth P.C. Tail .190" (4.83mm) Regular Point .645" (16.38mm) Full Height Ends
746-012-520-106 - Pressfit Card Edge Connector
746-012-520-106 - Pressfit Card Edge Connector
746-012-520-106 12 UL 94V-0 Thermoplastic Polyester Black Single Row .515" (13.08mm) Slot Depth P.C. Tail .190" (4.83mm) Regular Point .550" (13.97mm) Notched Ends
746-012-520-201 - Pressfit Card Edge Connector
746-012-520-201 - Pressfit Card Edge Connector
746-012-520-201 12 UL 94V-0 Thermoplastic Polyester Black Dual Row .515" (13.08mm) Slot Depth P.C. Tail .190" (4.83mm) Regular Point .645" (16.38mm) Full Height Ends
746-012-520-206 - Pressfit Card Edge Connector
746-012-520-206 - Pressfit Card Edge Connector
746-012-520-206 12 UL 94V-0 Thermoplastic Polyester Black Dual Row .515" (13.08mm) Slot Depth P.C. Tail .190" (4.83mm) Regular Point .550" (13.97mm) Notched Ends
746-012-520-501 - Pressfit Card Edge Connector
746-012-520-501 - Pressfit Card Edge Connector
746-012-520-501 12 UL 94V-0 Thermoplastic Polyester Black Single Row .340" (8.64mm) Slot Depth P.C. Tail .190" (4.83mm) Regular Point .645" (16.38mm) Full Height Ends
746-012-520-506 - Pressfit Card Edge Connector
746-012-520-506 - Pressfit Card Edge Connector
746-012-520-506 12 UL 94V-0 Thermoplastic Polyester Black Single Row .340" (8.64mm) Slot Depth P.C. Tail .190" (4.83mm) Regular Point .550" (13.97mm) Notched Ends
746-012-520-601 - Pressfit Card Edge Connector
746-012-520-601 - Pressfit Card Edge Connector
746-012-520-601 12 UL 94V-0 Thermoplastic Polyester Black Dual Row .340" (8.64mm) Slot Depth P.C. Tail .190" (4.83mm) Regular Point .645" (16.38mm) Full Height Ends
746-012-520-606 - Pressfit Card Edge Connector
746-012-520-606 - Pressfit Card Edge Connector
746-012-520-606 12 UL 94V-0 Thermoplastic Polyester Black Dual Row .340" (8.64mm) Slot Depth P.C. Tail .190" (4.83mm) Regular Point .550" (13.97mm) Notched Ends
746-012-525-101 - Pressfit Card Edge Connector
746-012-525-101 - Pressfit Card Edge Connector
746-012-525-101 12 UL 94V-0 Thermoplastic Polyester Black Single Row .515" (13.08mm) Slot Depth P.C. Tail .190" (4.83mm) High Point .645" (16.38mm) Full Height Ends
746-012-525-106 - Pressfit Card Edge Connector
746-012-525-106 - Pressfit Card Edge Connector
746-012-525-106 12 UL 94V-0 Thermoplastic Polyester Black Single Row .515" (13.08mm) Slot Depth P.C. Tail .190" (4.83mm) High Point .550" (13.97mm) Notched Ends
746-012-525-201 - Pressfit Card Edge Connector
746-012-525-201 - Pressfit Card Edge Connector
746-012-525-201 12 UL 94V-0 Thermoplastic Polyester Black Dual Row .515" (13.08mm) Slot Depth P.C. Tail .190" (4.83mm) High Point .645" (16.38mm) Full Height Ends
746-012-525-206 - Pressfit Card Edge Connector
746-012-525-206 - Pressfit Card Edge Connector
746-012-525-206 12 UL 94V-0 Thermoplastic Polyester Black Dual Row .515" (13.08mm) Slot Depth P.C. Tail .190" (4.83mm) High Point .550" (13.97mm) Notched Ends
746-012-525-501 - Pressfit Card Edge Connector
746-012-525-501 - Pressfit Card Edge Connector
746-012-525-501 12 UL 94V-0 Thermoplastic Polyester Black Single Row .340" (8.64mm) Slot Depth P.C. Tail .190" (4.83mm) High Point .645" (16.38mm) Full Height Ends
746-012-525-506 - Pressfit Card Edge Connector
746-012-525-506 - Pressfit Card Edge Connector
746-012-525-506 12 UL 94V-0 Thermoplastic Polyester Black Single Row .340" (8.64mm) Slot Depth P.C. Tail .190" (4.83mm) High Point .550" (13.97mm) Notched Ends
746-012-525-601 - Pressfit Card Edge Connector
746-012-525-601 - Pressfit Card Edge Connector
746-012-525-601 12 UL 94V-0 Thermoplastic Polyester Black Dual Row .340" (8.64mm) Slot Depth P.C. Tail .190" (4.83mm) High Point .645" (16.38mm) Full Height Ends
746-012-525-606 - Pressfit Card Edge Connector
746-012-525-606 - Pressfit Card Edge Connector
746-012-525-606 12 UL 94V-0 Thermoplastic Polyester Black Dual Row .340" (8.64mm) Slot Depth P.C. Tail .190" (4.83mm) High Point .550" (13.97mm) Notched Ends
746-012-527-101 - Pressfit Card Edge Connector
746-012-527-101 - Pressfit Card Edge Connector
746-012-527-101 12 UL 94V-0 Thermoplastic Polyester Black Single Row .515" (13.08mm) Slot Depth P.C. Tail .375" (9.52mm) High Point .645" (16.38mm) Full Height Ends
746-012-527-106 - Pressfit Card Edge Connector
746-012-527-106 - Pressfit Card Edge Connector
746-012-527-106 12 UL 94V-0 Thermoplastic Polyester Black Single Row .515" (13.08mm) Slot Depth P.C. Tail .375" (9.52mm) High Point .550" (13.97mm) Notched Ends
746-012-527-201 - Pressfit Card Edge Connector
746-012-527-201 - Pressfit Card Edge Connector
746-012-527-201 12 UL 94V-0 Thermoplastic Polyester Black Dual Row .515" (13.08mm) Slot Depth P.C. Tail .375" (9.52mm) High Point .645" (16.38mm) Full Height Ends
746-012-527-206 - Pressfit Card Edge Connector
746-012-527-206 - Pressfit Card Edge Connector
746-012-527-206 12 UL 94V-0 Thermoplastic Polyester Black Dual Row .515" (13.08mm) Slot Depth P.C. Tail .375" (9.52mm) High Point .550" (13.97mm) Notched Ends
746-012-527-501 - Pressfit Card Edge Connector
746-012-527-501 - Pressfit Card Edge Connector
746-012-527-501 12 UL 94V-0 Thermoplastic Polyester Black Single Row .340" (8.64mm) Slot Depth P.C. Tail .375" (9.52mm) High Point .645" (16.38mm) Full Height Ends
746-012-527-506 - Pressfit Card Edge Connector
746-012-527-506 - Pressfit Card Edge Connector
746-012-527-506 12 UL 94V-0 Thermoplastic Polyester Black Single Row .340" (8.64mm) Slot Depth P.C. Tail .375" (9.52mm) High Point .550" (13.97mm) Notched Ends
746-012-527-601 - Pressfit Card Edge Connector
746-012-527-601 - Pressfit Card Edge Connector
746-012-527-601 12 UL 94V-0 Thermoplastic Polyester Black Dual Row .340" (8.64mm) Slot Depth P.C. Tail .375" (9.52mm) High Point .645" (16.38mm) Full Height Ends
746-012-527-606 - Pressfit Card Edge Connector
746-012-527-606 - Pressfit Card Edge Connector
746-012-527-606 12 UL 94V-0 Thermoplastic Polyester Black Dual Row .340" (8.64mm) Slot Depth P.C. Tail .375" (9.52mm) High Point .550" (13.97mm) Notched Ends
746-012-540-101 - Pressfit Card Edge Connector
746-012-540-101 - Pressfit Card Edge Connector
746-012-540-101 12 UL 94V-0 Thermoplastic Polyester Black Single Row .515" (13.08mm) Slot Depth Wire Wrap .560" (14.22mm) Regular Point .645" (16.38mm) Full Height Ends
746-012-540-106 - Pressfit Card Edge Connector
746-012-540-106 - Pressfit Card Edge Connector
746-012-540-106 12 UL 94V-0 Thermoplastic Polyester Black Single Row .515" (13.08mm) Slot Depth Wire Wrap .560" (14.22mm) Regular Point .550" (13.97mm) Notched Ends
