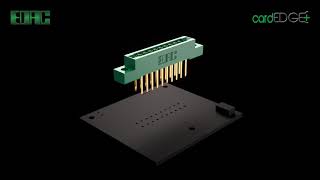

Features
- 0.156" (3.96mm) Contact Spacing by 0.200" (5.08mm) Row Spacing
- Accepts .062" (1.57mm) Nominal Thickness P.C. Board
- Low Profile Insulator Body, 0.473" (12.01mm)

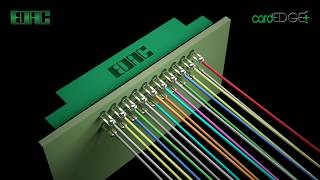

- Contact Termination Options include P.C. Tail, Wire Hole, Wire Wrap, 90° and Extender Board Bends
- Single or Dual Row Configurations
- Large Variety of Mounting Options

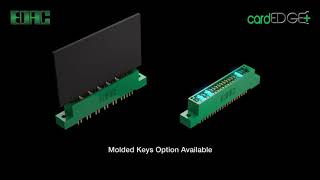

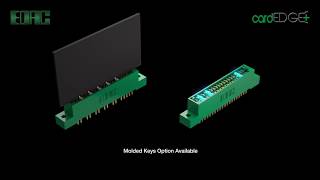

- Accepts between Contact and In-Contact Polarizing Keys
- Pre-assembled Card Guides are available
- RoHS Compliant UL Certified
Specifications
- Insulator Material: UL 94V-0 Thermoplastic Polyester
- Contact Material: Copper Alloy
- Contact Plating: Gold Plating on mating area and Tin Plating on tails with Nickel underplating all over
- Current Rating: 5A Continuous
- Contact Resistance: 10 milliohms maximum
- Withstand Voltage: 1800VAC rms at sea level between adjacent contacts
- Insulation Resistance : 5000 Megaohms minimum
- Operating Temperature: Operating Temperature: -40°C to +105°C
- Insertion Force: 16oz (4.45N) maximum per contact pair when tested with .070" (1.78mm) thick gauge
- Withdrawal Force: 1oz (0.28N) minimum per contact pair when tested with .054" (1.37mm) thick gauge
Notes






Card Edge Connector | Green | 0.156" (3.96mm) Pitch | 0.200" (5.08mm) Row Spacing | Low Profile Insulator
Loading Parts
Part # |
Position |
Rows |
Contact Plating |
Contact Description |
Contact Tail Size |
Contact Tail Length |
Mounting Option |
Material |
Datasheet |
3D Model |
|
---|---|---|---|---|---|---|---|---|---|---|---|
![]() ![]() |
307-007-445-101 | 7 | Single Row | Tin | Wire Wrap | .046" x .013" (1.17mm x 0.33mm) | .708'' (17.98mm) | No Mounting Lugs | UL 94V-0 Thermoplastic Polyester | ||
![]() ![]() |
307-007-445-102 | 7 | Single Row | Tin | Wire Wrap | .046" x .013" (1.17mm x 0.33mm) | .708'' (17.98mm) | .128'' (3.25mm) Dia. Mounting Holes | UL 94V-0 Thermoplastic Polyester | ||
![]() ![]() |
307-007-445-103 | 7 | Single Row | Tin | Wire Wrap | .046" x .013" (1.17mm x 0.33mm) | .708'' (17.98mm) | .116'' (2.95mm) I.D. Floating Eyelets | UL 94V-0 Thermoplastic Polyester | ||
![]() ![]() |
307-007-445-104 | 7 | Single Row | Tin | Wire Wrap | .046" x .013" (1.17mm x 0.33mm) | .708'' (17.98mm) | .156'' (3.96mm) Dia. Mounting Holes | UL 94V-0 Thermoplastic Polyester | ||
![]() ![]() |
307-007-445-107 | 7 | Single Row | Tin | Wire Wrap | .046" x .013" (1.17mm x 0.33mm) | .708'' (17.98mm) | M3-0.5 Metric Threaded Inserts | UL 94V-0 Thermoplastic Polyester | ||
![]() ![]() |
307-007-445-108 | 7 | Single Row | Tin | Wire Wrap | .046" x .013" (1.17mm x 0.33mm) | .708'' (17.98mm) | #4-40 Unified Threaded Inserts | UL 94V-0 Thermoplastic Polyester | ||
![]() ![]() |
307-007-445-112 | 7 | Single Row | Tin | Wire Wrap | .046" x .013" (1.17mm x 0.33mm) | .708'' (17.98mm) | .128'' (3.25mm) Dia. Side Mounting Holes | UL 94V-0 Thermoplastic Polyester | ||
![]() ![]() |
307-007-445-158 | 7 | Single Row | Tin | Wire Wrap | .046" x .013" (1.17mm x 0.33mm) | .708'' (17.98mm) | .468'' (11.89mm) Offset Card Guides | UL 94V-0 Thermoplastic Polyester | ||
![]() ![]() |
307-007-445-168 | 7 | Single Row | Tin | Wire Wrap | .046" x .013" (1.17mm x 0.33mm) | .708'' (17.98mm) | .344'' (8.74mm) Offset Card Guides | UL 94V-0 Thermoplastic Polyester | ||
![]() ![]() |
307-007-445-178 | 7 | Single Row | Tin | Wire Wrap | .046" x .013" (1.17mm x 0.33mm) | .708'' (17.98mm) | In-Line Card Guides | UL 94V-0 Thermoplastic Polyester | ||
![]() ![]() |
307-007-447-101 | 7 | Single Row | Tin | Wire Wrap | .046" x .013" (1.17mm x 0.33mm) | .520'' (13.21mm) | No Mounting Lugs | UL 94V-0 Thermoplastic Polyester | ||
![]() ![]() |
307-007-447-102 | 7 | Single Row | Tin | Wire Wrap | .046" x .013" (1.17mm x 0.33mm) | .520'' (13.21mm) | .128'' (3.25mm) Dia. Mounting Holes | UL 94V-0 Thermoplastic Polyester | ||
![]() ![]() |
307-007-447-103 | 7 | Single Row | Tin | Wire Wrap | .046" x .013" (1.17mm x 0.33mm) | .520'' (13.21mm) | .116'' (2.95mm) I.D. Floating Eyelets | UL 94V-0 Thermoplastic Polyester | ||
![]() ![]() |
307-007-447-104 | 7 | Single Row | Tin | Wire Wrap | .046" x .013" (1.17mm x 0.33mm) | .520'' (13.21mm) | .156'' (3.96mm) Dia. Mounting Holes | UL 94V-0 Thermoplastic Polyester | ||
![]() ![]() |
307-007-447-107 | 7 | Single Row | Tin | Wire Wrap | .046" x .013" (1.17mm x 0.33mm) | .520'' (13.21mm) | M3-0.5 Metric Threaded Inserts | UL 94V-0 Thermoplastic Polyester | ||
![]() ![]() |
307-007-447-108 | 7 | Single Row | Tin | Wire Wrap | .046" x .013" (1.17mm x 0.33mm) | .520'' (13.21mm) | #4-40 Unified Threaded Inserts | UL 94V-0 Thermoplastic Polyester | ||
![]() ![]() |
307-007-447-112 | 7 | Single Row | Tin | Wire Wrap | .046" x .013" (1.17mm x 0.33mm) | .520'' (13.21mm) | .128'' (3.25mm) Dia. Side Mounting Holes | UL 94V-0 Thermoplastic Polyester | ||
![]() ![]() |
307-007-447-158 | 7 | Single Row | Tin | Wire Wrap | .046" x .013" (1.17mm x 0.33mm) | .520'' (13.21mm) | .468'' (11.89mm) Offset Card Guides | UL 94V-0 Thermoplastic Polyester | ||
![]() ![]() |
307-007-447-168 | 7 | Single Row | Tin | Wire Wrap | .046" x .013" (1.17mm x 0.33mm) | .520'' (13.21mm) | .344'' (8.74mm) Offset Card Guides | UL 94V-0 Thermoplastic Polyester | ||
![]() ![]() |
307-007-447-178 | 7 | Single Row | Tin | Wire Wrap | .046" x .013" (1.17mm x 0.33mm) | .520'' (13.21mm) | In-Line Card Guides | UL 94V-0 Thermoplastic Polyester | ||
![]() ![]() |
307-007-453-101 | 7 | Single Row | Tin | 90 Degree Bend (Code 521 Contacts) | No Mounting Lugs | UL 94V-0 Thermoplastic Polyester | ||||
![]() ![]() |
307-007-453-102 | 7 | Single Row | Tin | 90 Degree Bend (Code 521 Contacts) | .128'' (3.25mm) Dia. Mounting Holes | UL 94V-0 Thermoplastic Polyester | ||||
![]() ![]() |
307-007-453-103 | 7 | Single Row | Tin | 90 Degree Bend (Code 521 Contacts) | .116'' (2.95mm) I.D. Floating Eyelets | UL 94V-0 Thermoplastic Polyester | ||||
![]() ![]() |
307-007-453-104 | 7 | Single Row | Tin | 90 Degree Bend (Code 521 Contacts) | .156'' (3.96mm) Dia. Mounting Holes | UL 94V-0 Thermoplastic Polyester | ||||
![]() ![]() |
307-007-453-107 | 7 | Single Row | Tin | 90 Degree Bend (Code 521 Contacts) | M3-0.5 Metric Threaded Inserts | UL 94V-0 Thermoplastic Polyester | ||||
![]() ![]() |
307-007-453-108 | 7 | Single Row | Tin | 90 Degree Bend (Code 521 Contacts) | #4-40 Unified Threaded Inserts | UL 94V-0 Thermoplastic Polyester | ||||
![]() ![]() |
307-007-453-112 | 7 | Single Row | Tin | 90 Degree Bend (Code 521 Contacts) | .128'' (3.25mm) Dia. Side Mounting Holes | UL 94V-0 Thermoplastic Polyester | ||||
![]() ![]() |
307-007-453-158 | 7 | Single Row | Tin | 90 Degree Bend (Code 521 Contacts) | .468'' (11.89mm) Offset Card Guides | UL 94V-0 Thermoplastic Polyester | ||||
![]() ![]() |
307-007-453-168 | 7 | Single Row | Tin | 90 Degree Bend (Code 521 Contacts) | .344'' (8.74mm) Offset Card Guides | UL 94V-0 Thermoplastic Polyester | ||||
![]() ![]() |
307-007-453-178 | 7 | Single Row | Tin | 90 Degree Bend (Code 521 Contacts) | In-Line Card Guides | UL 94V-0 Thermoplastic Polyester | ||||
![]() ![]() |
307-007-454-101 | 7 | Single Row | Tin | 90 Degree Bend (Code 501 Contacts) | No Mounting Lugs | UL 94V-0 Thermoplastic Polyester | ||||
![]() ![]() |
307-007-454-102 | 7 | Single Row | Tin | 90 Degree Bend (Code 501 Contacts) | .128'' (3.25mm) Dia. Mounting Holes | UL 94V-0 Thermoplastic Polyester | ||||
![]() ![]() |
307-007-454-103 | 7 | Single Row | Tin | 90 Degree Bend (Code 501 Contacts) | .116'' (2.95mm) I.D. Floating Eyelets | UL 94V-0 Thermoplastic Polyester | ||||
![]() ![]() |
307-007-454-104 | 7 | Single Row | Tin | 90 Degree Bend (Code 501 Contacts) | .156'' (3.96mm) Dia. Mounting Holes | UL 94V-0 Thermoplastic Polyester | ||||
![]() ![]() |
307-007-454-107 | 7 | Single Row | Tin | 90 Degree Bend (Code 501 Contacts) | M3-0.5 Metric Threaded Inserts | UL 94V-0 Thermoplastic Polyester | ||||
![]() ![]() |
307-007-454-108 | 7 | Single Row | Tin | 90 Degree Bend (Code 501 Contacts) | #4-40 Unified Threaded Inserts | UL 94V-0 Thermoplastic Polyester | ||||
![]() ![]() |
307-007-454-112 | 7 | Single Row | Tin | 90 Degree Bend (Code 501 Contacts) | .128'' (3.25mm) Dia. Side Mounting Holes | UL 94V-0 Thermoplastic Polyester | ||||
![]() ![]() |
307-007-454-158 | 7 | Single Row | Tin | 90 Degree Bend (Code 501 Contacts) | .468'' (11.89mm) Offset Card Guides | UL 94V-0 Thermoplastic Polyester | ||||
![]() ![]() |
307-007-454-168 | 7 | Single Row | Tin | 90 Degree Bend (Code 501 Contacts) | .344'' (8.74mm) Offset Card Guides | UL 94V-0 Thermoplastic Polyester | ||||
![]() ![]() |
307-007-454-178 | 7 | Single Row | Tin | 90 Degree Bend (Code 501 Contacts) | In-Line Card Guides | UL 94V-0 Thermoplastic Polyester | ||||
![]() ![]() |
307-007-457-101 | 7 | Single Row | Tin | 90 Degree Bend (Code 541 Contacts) | No Mounting Lugs | UL 94V-0 Thermoplastic Polyester | ||||
![]() ![]() |
307-007-457-102 | 7 | Single Row | Tin | 90 Degree Bend (Code 541 Contacts) | .128'' (3.25mm) Dia. Mounting Holes | UL 94V-0 Thermoplastic Polyester | ||||
![]() ![]() |
307-007-457-103 | 7 | Single Row | Tin | 90 Degree Bend (Code 541 Contacts) | .116'' (2.95mm) I.D. Floating Eyelets | UL 94V-0 Thermoplastic Polyester | ||||
![]() ![]() |
307-007-457-104 | 7 | Single Row | Tin | 90 Degree Bend (Code 541 Contacts) | .156'' (3.96mm) Dia. Mounting Holes | UL 94V-0 Thermoplastic Polyester | ||||
![]() ![]() |
307-007-457-107 | 7 | Single Row | Tin | 90 Degree Bend (Code 541 Contacts) | M3-0.5 Metric Threaded Inserts | UL 94V-0 Thermoplastic Polyester | ||||
![]() ![]() |
307-007-457-108 | 7 | Single Row | Tin | 90 Degree Bend (Code 541 Contacts) | #4-40 Unified Threaded Inserts | UL 94V-0 Thermoplastic Polyester | ||||
![]() ![]() |
307-007-457-112 | 7 | Single Row | Tin | 90 Degree Bend (Code 541 Contacts) | .128'' (3.25mm) Dia. Side Mounting Holes | UL 94V-0 Thermoplastic Polyester | ||||
![]() ![]() |
307-007-457-158 | 7 | Single Row | Tin | 90 Degree Bend (Code 541 Contacts) | .468'' (11.89mm) Offset Card Guides | UL 94V-0 Thermoplastic Polyester | ||||
![]() ![]() |
307-007-457-168 | 7 | Single Row | Tin | 90 Degree Bend (Code 541 Contacts) | .344'' (8.74mm) Offset Card Guides | UL 94V-0 Thermoplastic Polyester | ||||
![]() ![]() |
307-007-457-178 | 7 | Single Row | Tin | 90 Degree Bend (Code 541 Contacts) | In-Line Card Guides | UL 94V-0 Thermoplastic Polyester |
