Features
- .150" (3.81mm) Contact Spacing x .150" (3.81mm) Row Spacing Suitable For Automatic Wire Wrapping
- Plug and Receptacle in 14 or 36 Contact Sizes
- Edacon Hermaphroditic Contact Mating Design

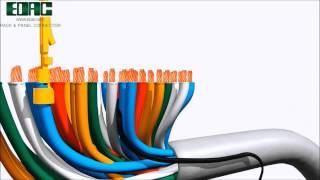

- Contact Termination Options include Crimp, P.C. Tail, Wire Hole and Wire Wrap
- Mating and Unmating Simplified with use of Actuating Screws
- Optional Covers with Side or Top Entry Cable Clamp in Plastic or Metal material Available for all Connector Sizes
- Versatile Metal Cover Design permits Assembly or Disassembly After Cabling is Complete plus Cable Entry Style Flexibility
- Actuating Screws, Locknuts, Polarizing Hardware, Covers and Contacts Suitable for either Plug or Receptacle
- Polarizing Hardware Adjustable for 288 Mating Combinations

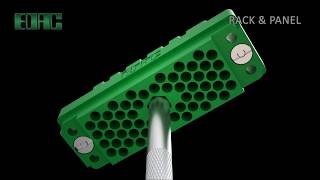

- Tools Available for Contact Installation, Removal and Crimping and Polarizing Changes
- RoHS Compliant
Specifications
- Insulator Material : Polycarbonate UL 94V- 0
- Color : Grey
- Contact Material : Copper Alloy
- Contact Plating : Gold Plating over Nickel over entire contact
- Current Rating : 8.5 Amperes
- Contact Resistance : 10 milliohms maximum
- Withstanding Voltage : 2000 VAC rms at sea level
- Insulation Resistance : 5000 Megaohms minimum
- Operating Temp : -40°C to +105°C
- Insertion & Withdrawal Force : 2 to 16 Oz (0.56 to 4.45N) per contact position
Notes





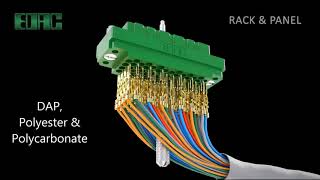

Rack and Panel Connectors | .150" (3.81mm) Contact Spacing x .150" (3.81mm) Row Spacing Suitable For Automatic Wire Wrapping
Loading Parts
Part # |
Position |
Gender |
Contact Description |
Contact Tail Size |
Contact Tail Length |
Hardware description |
Material |
Cover Description |
Datasheet |
3D Model |
|
---|---|---|---|---|---|---|---|---|---|---|---|
![]() ![]() |
519-014-000-300 | 14 | Plug | No Contacts Assembled | No Contacts Assembled | No Contacts Assembled | No Hardware | Polycarbonate UL 94V-0 | No Cover Assembled | ||
![]() ![]() |
519-014-000-301 | 14 | Plug | No Contacts Assembled | No Contacts Assembled | No Contacts Assembled | Actuating Screw & Polarizing Hardware | Polycarbonate UL 94V-0 | No Cover Assembled | ||
![]() ![]() |
519-014-000-302 | 14 | Plug | No Contacts Assembled | No Contacts Assembled | No Contacts Assembled | Locknut & Polarizing Hardware | Polycarbonate UL 94V-0 | No Cover Assembled | ||
![]() ![]() |
519-014-000-305 | 14 | Plug | No Contacts Assembled | No Contacts Assembled | No Contacts Assembled | Actuating Screw with No Polarizing Hardware | Polycarbonate UL 94V-0 | No Cover Assembled | ||
![]() ![]() |
519-014-000-306 | 14 | Plug | No Contacts Assembled | No Contacts Assembled | No Contacts Assembled | Locknut with No Polarizing Hardware | Polycarbonate UL 94V-0 | No Cover Assembled | ||
![]() ![]() |
519-014-000-310 | 14 | Plug | No Contacts Assembled | No Contacts Assembled | No Contacts Assembled | No Hardware | Polycarbonate UL 94V-0 | Plastic Cover, Top Entry Standard Clamp | ||
![]() ![]() |
519-014-000-311 | 14 | Plug | No Contacts Assembled | No Contacts Assembled | No Contacts Assembled | Actuating Screw & Polarizing Hardware | Polycarbonate UL 94V-0 | Plastic Cover, Top Entry Standard Clamp | ||
![]() ![]() |
519-014-000-312 | 14 | Plug | No Contacts Assembled | No Contacts Assembled | No Contacts Assembled | Locknut & Polarizing Hardware | Polycarbonate UL 94V-0 | Plastic Cover, Top Entry Standard Clamp | ||
![]() ![]() |
519-014-000-315 | 14 | Plug | No Contacts Assembled | No Contacts Assembled | No Contacts Assembled | Actuating Screw with No Polarizing Hardware | Polycarbonate UL 94V-0 | Plastic Cover, Top Entry Standard Clamp | ||
![]() ![]() |
519-014-000-316 | 14 | Plug | No Contacts Assembled | No Contacts Assembled | No Contacts Assembled | Locknut with No Polarizing Hardware | Polycarbonate UL 94V-0 | Plastic Cover, Top Entry Standard Clamp | ||
![]() ![]() |
519-014-000-320 | 14 | Plug | No Contacts Assembled | No Contacts Assembled | No Contacts Assembled | No Hardware | Polycarbonate UL 94V-0 | Plastic Cover, Side Entry Standard Clamp | ||
![]() ![]() |
519-014-000-321 | 14 | Plug | No Contacts Assembled | No Contacts Assembled | No Contacts Assembled | Actuating Screw & Polarizing Hardware | Polycarbonate UL 94V-0 | Plastic Cover, Side Entry Standard Clamp | ||
![]() ![]() |
519-014-000-322 | 14 | Plug | No Contacts Assembled | No Contacts Assembled | No Contacts Assembled | Locknut & Polarizing Hardware | Polycarbonate UL 94V-0 | Plastic Cover, Side Entry Standard Clamp | ||
![]() ![]() |
519-014-000-325 | 14 | Plug | No Contacts Assembled | No Contacts Assembled | No Contacts Assembled | Actuating Screw with No Polarizing Hardware | Polycarbonate UL 94V-0 | Plastic Cover, Side Entry Standard Clamp | ||
![]() ![]() |
519-014-000-326 | 14 | Plug | No Contacts Assembled | No Contacts Assembled | No Contacts Assembled | Locknut with No Polarizing Hardware | Polycarbonate UL 94V-0 | Plastic Cover, Side Entry Standard Clamp | ||
![]() ![]() |
519-014-000-350 | 14 | Plug | No Contacts Assembled | No Contacts Assembled | No Contacts Assembled | No Hardware | Polycarbonate UL 94V-0 | Metal Cover, Side Entry | ||
![]() ![]() |
519-014-000-351 | 14 | Plug | No Contacts Assembled | No Contacts Assembled | No Contacts Assembled | Actuating Screw & Polarizing Hardware | Polycarbonate UL 94V-0 | Metal Cover, Side Entry | ||
![]() ![]() |
519-014-000-352 | 14 | Plug | No Contacts Assembled | No Contacts Assembled | No Contacts Assembled | Locknut & Polarizing Hardware | Polycarbonate UL 94V-0 | Metal Cover, Side Entry | ||
![]() ![]() |
519-014-000-355 | 14 | Plug | No Contacts Assembled | No Contacts Assembled | No Contacts Assembled | Actuating Screw with No Polarizing Hardware | Polycarbonate UL 94V-0 | Metal Cover, Side Entry | ||
![]() ![]() |
519-014-000-356 | 14 | Plug | No Contacts Assembled | No Contacts Assembled | No Contacts Assembled | Locknut with No Polarizing Hardware | Polycarbonate UL 94V-0 | Metal Cover, Side Entry | ||
![]() ![]() |
519-014-000-360 | 14 | Plug | No Contacts Assembled | No Contacts Assembled | No Contacts Assembled | No Hardware | Polycarbonate UL 94V-0 | Metal Cover, Top Entry | ||
![]() ![]() |
519-014-000-361 | 14 | Plug | No Contacts Assembled | No Contacts Assembled | No Contacts Assembled | Actuating Screw & Polarizing Hardware | Polycarbonate UL 94V-0 | Metal Cover, Top Entry | ||
![]() ![]() |
519-014-000-362 | 14 | Plug | No Contacts Assembled | No Contacts Assembled | No Contacts Assembled | Locknut & Polarizing Hardware | Polycarbonate UL 94V-0 | Metal Cover, Top Entry | ||
![]() ![]() |
519-014-000-365 | 14 | Plug | No Contacts Assembled | No Contacts Assembled | No Contacts Assembled | Actuating Screw with No Polarizing Hardware | Polycarbonate UL 94V-0 | Metal Cover, Top Entry | ||
![]() ![]() |
519-014-000-366 | 14 | Plug | No Contacts Assembled | No Contacts Assembled | No Contacts Assembled | Locknut with No Polarizing Hardware | Polycarbonate UL 94V-0 | Metal Cover, Top Entry | ||
![]() ![]() |
519-014-000-400 | 14 | Receptacle | No Contacts Assembled | No Contacts Assembled | No Contacts Assembled | No Hardware | Polycarbonate UL 94V-0 | No Cover Assembled | ||
![]() ![]() |
519-014-000-401 | 14 | Receptacle | No Contacts Assembled | No Contacts Assembled | No Contacts Assembled | Actuating Screw & Polarizing Hardware | Polycarbonate UL 94V-0 | No Cover Assembled | ||
![]() ![]() |
519-014-000-402 | 14 | Receptacle | No Contacts Assembled | No Contacts Assembled | No Contacts Assembled | Locknut & Polarizing Hardware | Polycarbonate UL 94V-0 | No Cover Assembled | ||
![]() ![]() |
519-014-000-405 | 14 | Receptacle | No Contacts Assembled | No Contacts Assembled | No Contacts Assembled | Actuating Screw with No Polarizing Hardware | Polycarbonate UL 94V-0 | No Cover Assembled | ||
![]() ![]() |
519-014-000-406 | 14 | Receptacle | No Contacts Assembled | No Contacts Assembled | No Contacts Assembled | Locknut with No Polarizing Hardware | Polycarbonate UL 94V-0 | No Cover Assembled | ||
![]() ![]() |
519-014-000-410 | 14 | Receptacle | No Contacts Assembled | No Contacts Assembled | No Contacts Assembled | No Hardware | Polycarbonate UL 94V-0 | Plastic Cover, Top Entry Standard Clamp | ||
![]() ![]() |
519-014-000-411 | 14 | Receptacle | No Contacts Assembled | No Contacts Assembled | No Contacts Assembled | Actuating Screw & Polarizing Hardware | Polycarbonate UL 94V-0 | Plastic Cover, Top Entry Standard Clamp | ||
![]() ![]() |
519-014-000-412 | 14 | Receptacle | No Contacts Assembled | No Contacts Assembled | No Contacts Assembled | Locknut & Polarizing Hardware | Polycarbonate UL 94V-0 | Plastic Cover, Top Entry Standard Clamp | ||
![]() ![]() |
519-014-000-415 | 14 | Receptacle | No Contacts Assembled | No Contacts Assembled | No Contacts Assembled | Actuating Screw with No Polarizing Hardware | Polycarbonate UL 94V-0 | Plastic Cover, Top Entry Standard Clamp | ||
![]() ![]() |
519-014-000-416 | 14 | Receptacle | No Contacts Assembled | No Contacts Assembled | No Contacts Assembled | Locknut with No Polarizing Hardware | Polycarbonate UL 94V-0 | Plastic Cover, Top Entry Standard Clamp | ||
![]() ![]() |
519-014-000-420 | 14 | Receptacle | No Contacts Assembled | No Contacts Assembled | No Contacts Assembled | No Hardware | Polycarbonate UL 94V-0 | Plastic Cover, Side Entry Standard Clamp | ||
![]() ![]() |
519-014-000-421 | 14 | Receptacle | No Contacts Assembled | No Contacts Assembled | No Contacts Assembled | Actuating Screw & Polarizing Hardware | Polycarbonate UL 94V-0 | Plastic Cover, Side Entry Standard Clamp | ||
![]() ![]() |
519-014-000-422 | 14 | Receptacle | No Contacts Assembled | No Contacts Assembled | No Contacts Assembled | Locknut & Polarizing Hardware | Polycarbonate UL 94V-0 | Plastic Cover, Side Entry Standard Clamp | ||
![]() ![]() |
519-014-000-425 | 14 | Receptacle | No Contacts Assembled | No Contacts Assembled | No Contacts Assembled | Actuating Screw with No Polarizing Hardware | Polycarbonate UL 94V-0 | Plastic Cover, Side Entry Standard Clamp | ||
![]() ![]() |
519-014-000-426 | 14 | Receptacle | No Contacts Assembled | No Contacts Assembled | No Contacts Assembled | Locknut with No Polarizing Hardware | Polycarbonate UL 94V-0 | Plastic Cover, Side Entry Standard Clamp | ||
![]() ![]() |
519-014-000-450 | 14 | Receptacle | No Contacts Assembled | No Contacts Assembled | No Contacts Assembled | No Hardware | Polycarbonate UL 94V-0 | Metal Cover, Side Entry | ||
![]() ![]() |
519-014-000-451 | 14 | Receptacle | No Contacts Assembled | No Contacts Assembled | No Contacts Assembled | Actuating Screw & Polarizing Hardware | Polycarbonate UL 94V-0 | Metal Cover, Side Entry | ||
![]() ![]() |
519-014-000-452 | 14 | Receptacle | No Contacts Assembled | No Contacts Assembled | No Contacts Assembled | Locknut & Polarizing Hardware | Polycarbonate UL 94V-0 | Metal Cover, Side Entry | ||
![]() ![]() |
519-014-000-455 | 14 | Receptacle | No Contacts Assembled | No Contacts Assembled | No Contacts Assembled | Actuating Screw with No Polarizing Hardware | Polycarbonate UL 94V-0 | Metal Cover, Side Entry | ||
![]() ![]() |
519-014-000-456 | 14 | Receptacle | No Contacts Assembled | No Contacts Assembled | No Contacts Assembled | Locknut with No Polarizing Hardware | Polycarbonate UL 94V-0 | Metal Cover, Side Entry | ||
![]() ![]() |
519-014-000-460 | 14 | Receptacle | No Contacts Assembled | No Contacts Assembled | No Contacts Assembled | No Hardware | Polycarbonate UL 94V-0 | Metal Cover, Top Entry | ||
![]() ![]() |
519-014-000-461 | 14 | Receptacle | No Contacts Assembled | No Contacts Assembled | No Contacts Assembled | Actuating Screw & Polarizing Hardware | Polycarbonate UL 94V-0 | Metal Cover, Top Entry | ||
![]() ![]() |
519-014-000-462 | 14 | Receptacle | No Contacts Assembled | No Contacts Assembled | No Contacts Assembled | Locknut & Polarizing Hardware | Polycarbonate UL 94V-0 | Metal Cover, Top Entry | ||
![]() ![]() |
519-014-000-465 | 14 | Receptacle | No Contacts Assembled | No Contacts Assembled | No Contacts Assembled | Actuating Screw with No Polarizing Hardware | Polycarbonate UL 94V-0 | Metal Cover, Top Entry | ||
![]() ![]() |
519-014-000-466 | 14 | Receptacle | No Contacts Assembled | No Contacts Assembled | No Contacts Assembled | Locknut with No Polarizing Hardware | Polycarbonate UL 94V-0 | Metal Cover, Top Entry |
