691G Series

Features

  • Up to 480 Mbps communication speed for standard USB 2.0
  • Up to 5 Gbps communication speed for standard USB 3.0
  • Industry standard plug and play technology - 'Hot Pluggable'
  • Compatible with synchronous and asynchronous data transfer
  • Data and power combined in one small package
  • RoHS compliant


Specifications

  • Insulator Material: UL-94V-0 Thermoplastic
  • Contact Material: Copper Alloy
  • Contact Plating: Nickel under plating with gold plating on contact areas and tin plating on tails
  • Shell Material: Brass with nickel plating
  • Insertion Force: 35N maximum
  • Withdrawal Force: 3N minimum 2.0 Mini / 8N minimum 2.0 Micro



Notes

Ordering Guide:


691G


USB MINI & MICRO TYPE-B PLUGS - CABLE END


OR

Loading Parts


Part #

Gender

Connector Type

Contact Plating

Contact Description

Mounting Option

Shell Option

Material

Insulator Color

Datasheet

3D Model

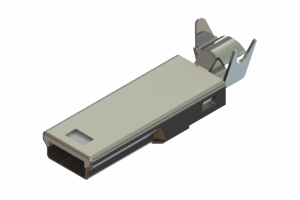

691G205J1A0-510 - USB Type-B Mini jacketed cable end connector
691G205J1A0-510 - USB Type-B Mini jacketed cable end connector
691G205J1A0-510 Plug USB 2.0 Mini-B 2 to 5 Microinches of Gold Plating Solder Pads None 2 Piece Metal Shell with Cable Crimp LCP White/Natural
691G205J1A0-511 - USB Type-B Mini jacketed cable end connector
691G205J1A0-511 - USB Type-B Mini jacketed cable end connector
691G205J1A0-511 Plug USB 2.0 Mini-B 2 to 5 Microinches of Gold Plating Solder Pads None 2 Piece Metal Shell with Cable Crimp LCP Black
691G205J1A0-520 - USB Type-B Mini jacketed cable end connector
691G205J1A0-520 - USB Type-B Mini jacketed cable end connector
691G205J1A0-520 Plug USB 2.0 Mini-B 2 to 5 Microinches of Gold Plating Solder Pads None 2 Piece Metal Shell with Cable Crimp PBT White/Natural
691G205J1A0-521 - USB Type-B Mini jacketed cable end connector
691G205J1A0-521 - USB Type-B Mini jacketed cable end connector
691G205J1A0-521 Plug USB 2.0 Mini-B 2 to 5 Microinches of Gold Plating Solder Pads None 2 Piece Metal Shell with Cable Crimp PBT Black
691G205J2A0-510 - USB Type-B Mini jacketed cable end connector
691G205J2A0-510 - USB Type-B Mini jacketed cable end connector
691G205J2A0-510 Plug USB 2.0 Mini-B Gold Flash Plating Solder Pads None 2 Piece Metal Shell with Cable Crimp LCP White/Natural
691G205J2A0-511 - USB Type-B Mini jacketed cable end connector
691G205J2A0-511 - USB Type-B Mini jacketed cable end connector
691G205J2A0-511 Plug USB 2.0 Mini-B Gold Flash Plating Solder Pads None 2 Piece Metal Shell with Cable Crimp LCP Black
691G205J2A0-520 - USB Type-B Mini jacketed cable end connector
691G205J2A0-520 - USB Type-B Mini jacketed cable end connector
691G205J2A0-520 Plug USB 2.0 Mini-B Gold Flash Plating Solder Pads None 2 Piece Metal Shell with Cable Crimp PBT White/Natural
691G205J2A0-521 - USB Type-B Mini jacketed cable end connector
691G205J2A0-521 - USB Type-B Mini jacketed cable end connector
691G205J2A0-521 Plug USB 2.0 Mini-B Gold Flash Plating Solder Pads None 2 Piece Metal Shell with Cable Crimp PBT Black
691G205J3A0-510 - USB Type-B Mini jacketed cable end connector
691G205J3A0-510 - USB Type-B Mini jacketed cable end connector
691G205J3A0-510 Plug USB 2.0 Mini-B 5 to 10 Microinches of Gold Plating Solder Pads None 2 Piece Metal Shell with Cable Crimp LCP White/Natural
691G205J3A0-511 - USB Type-B Mini jacketed cable end connector
691G205J3A0-511 - USB Type-B Mini jacketed cable end connector
691G205J3A0-511 Plug USB 2.0 Mini-B 5 to 10 Microinches of Gold Plating Solder Pads None 2 Piece Metal Shell with Cable Crimp LCP Black
691G205J3A0-520 - USB Type-B Mini jacketed cable end connector
691G205J3A0-520 - USB Type-B Mini jacketed cable end connector
691G205J3A0-520 Plug USB 2.0 Mini-B 5 to 10 Microinches of Gold Plating Solder Pads None 2 Piece Metal Shell with Cable Crimp PBT White/Natural
691G205J3A0-521 - USB Type-B Mini jacketed cable end connector
691G205J3A0-521 - USB Type-B Mini jacketed cable end connector
691G205J3A0-521 Plug USB 2.0 Mini-B 5 to 10 Microinches of Gold Plating Solder Pads None 2 Piece Metal Shell with Cable Crimp PBT Black
691G205J5A0-510 - USB Type-B Mini jacketed cable end connector
691G205J5A0-510 - USB Type-B Mini jacketed cable end connector
691G205J5A0-510 Plug USB 2.0 Mini-B 15 Microinches of Gold Plating Solder Pads None 2 Piece Metal Shell with Cable Crimp LCP White/Natural
691G205J5A0-511 - USB Type-B Mini jacketed cable end connector
691G205J5A0-511 - USB Type-B Mini jacketed cable end connector
691G205J5A0-511 Plug USB 2.0 Mini-B 15 Microinches of Gold Plating Solder Pads None 2 Piece Metal Shell with Cable Crimp LCP Black
691G205J5A0-520 - USB Type-B Mini jacketed cable end connector
691G205J5A0-520 - USB Type-B Mini jacketed cable end connector
691G205J5A0-520 Plug USB 2.0 Mini-B 15 Microinches of Gold Plating Solder Pads None 2 Piece Metal Shell with Cable Crimp PBT White/Natural
691G205J5A0-521 - USB Type-B Mini jacketed cable end connector
691G205J5A0-521 - USB Type-B Mini jacketed cable end connector
691G205J5A0-521 Plug USB 2.0 Mini-B 15 Microinches of Gold Plating Solder Pads None 2 Piece Metal Shell with Cable Crimp PBT Black
691G205J6A0-510 - USB Type-B Mini jacketed cable end connector
691G205J6A0-510 - USB Type-B Mini jacketed cable end connector
691G205J6A0-510 Plug USB 2.0 Mini-B 30 Microinches of Gold Plating Solder Pads None 2 Piece Metal Shell with Cable Crimp LCP White/Natural
691G205J6A0-511 - USB Type-B Mini jacketed cable end connector
691G205J6A0-511 - USB Type-B Mini jacketed cable end connector
691G205J6A0-511 Plug USB 2.0 Mini-B 30 Microinches of Gold Plating Solder Pads None 2 Piece Metal Shell with Cable Crimp LCP Black
691G205J6A0-520 - USB Type-B Mini jacketed cable end connector
691G205J6A0-520 - USB Type-B Mini jacketed cable end connector
691G205J6A0-520 Plug USB 2.0 Mini-B 30 Microinches of Gold Plating Solder Pads None 2 Piece Metal Shell with Cable Crimp PBT White/Natural
691G205J6A0-521 - USB Type-B Mini jacketed cable end connector
691G205J6A0-521 - USB Type-B Mini jacketed cable end connector
691G205J6A0-521 Plug USB 2.0 Mini-B 30 Microinches of Gold Plating Solder Pads None 2 Piece Metal Shell with Cable Crimp PBT Black
