171 Series

Features

  • For Advanced TCA Systems
  • Insertion Loss: Differential Pair Signaling 12 Gbps @ -4 dB
  • Number of Contacts: 170
  • Height: 12.85 mm
  • Application: IPC


Specifications

  • Housing Material: High Temperature Thermoplastic UL-94V-0
  • Contact Material: Copper Alloy
  • Contact Plating: Gold Flash Plating
  • Current Rating: 0.3 A Per Ground Conductor, 0.4 A Per General Purpose Conductor, and 0.7 A Per Power Conductor
  • Voltage Rating: 80 V AC
  • Contact Resistance: Initial: 25 m? Maximum, After Test: r10 m?
  • Dielectric Withstand Voltage: 80 V AC for 60 seconds
  • Insulation Resistance: 100 M? Minimum AT 80V DC
  • -40°C to +105°C
  • Mating Force: 100 N Maximum
  • Unmating Force: 65 N Maximum




Notes

Ordering Guide:


171


Micro TCA + Connector 0.75mm Pitch


OR

Loading Parts


Part #

Position

Material

Color

Datasheet

3D Model

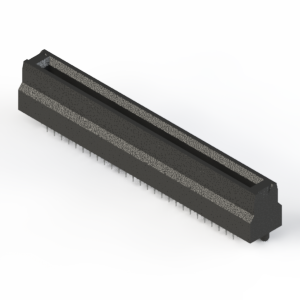

171-170-231-012 - Micro TCA + Connector
171-170-231-012 - Micro TCA + Connector
171-170-231-012 170 High Temperature Thermoplastic UL-94V-0 Black
