RACK AND PANEL CONNECTORS

RACK AND PANEL CONNECTORS

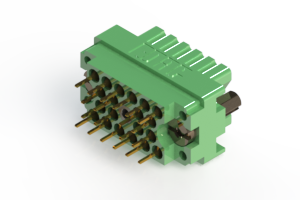

EDAC Rack & Panel connectors offer a high reliability connection, ideal where a large number of wires are interconnected to a panel. Available in seven body sizes ranging from 14 to 120 contact positions. The hermaphroditic contact design provides a gas tight connection with superior shock and vibration resistance. Ease of mating is facilitated with the use of an actuating screw and lock nut.



Rectangular Connector Brochure:

Interconnect Brochure:



RACK AND PANEL CONNECTORS Series

Series

Description

516 Series

516
Rack and Panel Connectors | .150" (3.81mm) Contact Spacing x .130" (3.30mm) or .150" (3.81mm) Row Spacing with staggered Grid

519 Series

519
Rack and Panel Connectors | .150" (3.81mm) Contact Spacing x .150" (3.81mm) Row Spacing Suitable For Automatic Wire Wrapping

556 Series

556
Rack and Panel Connectors | .156" (3.96mm) Contact Spacing
